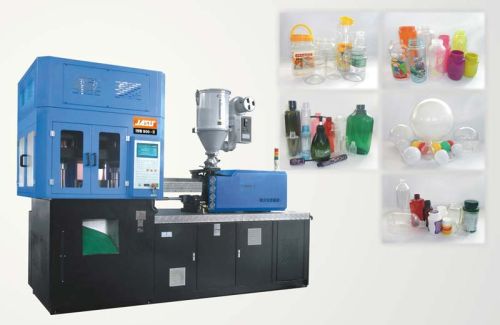

Injection Stretch Blow Molding Machine Isbm

we are offering injection stretch blow molding machine isbm. jasu isb800-4 is a one stage injection blow molding machine (not from performs) for pet, pc and pp containers. the machine is capable of accepting 6 cavities. fully automatic, single step, injection stretch blow moulding machines produce containers from 0.3 litres up to 1 litres. widely used for manufacturing bottles for pharmaceutical, healthcare, food, beverages, cosmetics and other applications.
a 4 station indexing head contains injection, temperature adjustment, blowing and outfeed stations which operate simultaneously in a fully automatic cycle. highly efficient with low energy comsuption.
all machines are built to iso9001 standards and ce certified.
isb800-4 machine parameters
screw diameter: 40mm
screw ld ratio: 23ld
screw speed: 0-220rmin
injection weight: 195g
injection pressure: 1504kgcm2
max. hydraulic pressure:140kgcm
plasticizing capacity: 14gs
injection rate: 140gs
blow clamping force: 80kn
clamp tonnage: 400kn
wheel diameter: 800mm
max. height of bottle: 250mm
open vertical mode trip:430mm
max. pump pressure: 16mpa
motor oil: 18.5kw
electric power: 13kw
tank volume: 400l
dimension of machine: 3.8x1.45x3.0m
machine weight: 5ton
