    Ink Jet Coder

    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    Large Character Colored Touch Screen On-Line Non-Contact Ink Jet Printer Model PRODIGIT – PD53 (Maplejet-Canada), which is a Zero Maintenance, high resolution,SIXTEEN line (character height 1 to 53....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 17 Years
    • building Nature of Business Retailer
    • gst icon GST No. 27ACXPG1217A1ZX

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

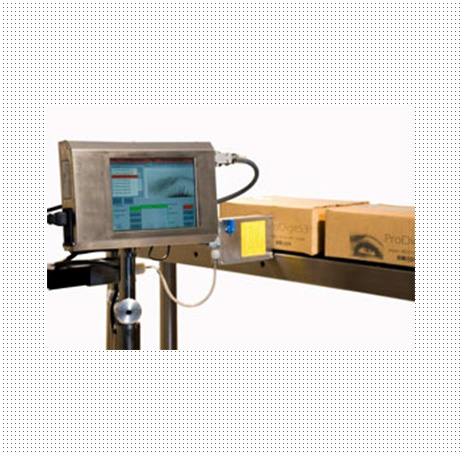

    Large Character Colored Touch Screen On-Line Non-Contact Ink Jet Printer Model PRODIGIT – PD53 (Maplejet-Canada), which is a Zero Maintenance, high resolution,SIXTEEN line (character height 1 to 53 mm) English / Arabic printer. It has Stainless Steel construction & can be installed on Porous & Non-Porous production line to print B.No., Mfg.Date, Exp.Date, MRP , Time, Serial No. (AGMARK), High Quality Logos, Hindi / Local Language also with option of 90° traverse print on bottles, pouches, labels, cartons, Pipes, etc. It is a High Speed printer & has a large Colored WYSIWYG Touch Screen Display for setting all parameters & can accept data from computer via. USB / Wi-Fi connection. It is also capable of accepting variable / random data from Excel sheets or from external on-line sources like Weighing Scales, PLCs, etc. It can print variable High Resolution, Scannable 1D / 2D (Datamatrix / QR) Barcodes with changing/serial numbers as required for Primary / Secondary & Tertiary Packaging in the Pharmaceutical Industry. It also has the provision of connecting up to TWO 53 mm Proton Print-Heads simultaneously with different data from each head or for a large 106 mm (4.3”) height print


    Coder ModelPRODIGIT-53
    Supply Voltage1Ø 90 to 220 Vac ± 10%, 50/60 Hz, 50 VA
    Operating Range0 to 45 deg. C, 10 – 90% RH non-condensing.
    Printing Area16 lines of 120 char each from 1 to 53 mm high.
    Printing SpeedMax. 65 Meters / min. for 1 to 16 line printing.
    Prints usingXAAR (UK) Piezo-electric print head for spraying ink.
    Print DistanceMax. 6 mm Down or in Front or at any angle.
    Inking MediumDisposable pre-mix ink cartridge
    Printing MediumSolvent based inks (black, blue*, red*, etc.)
    Ink Drying TimeMin. 5 to 10 seconds on plastic, metal & laminates.
    ImpressionsAppx. 18 million d/m char. of 2 mm per cartridge of ink.
    Dimensions12X19X8 cm & 30X19X60 cm with stand.
    Weight3 Kgs for machine & 15 Kgs with stand.
