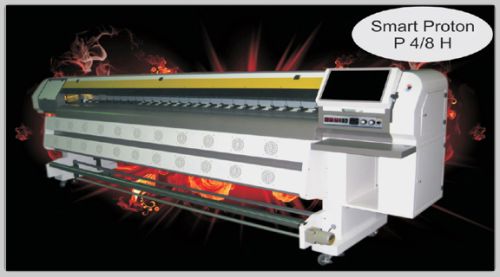

Inkjet Digital Printer

Get Latest Price

Auto-cleaning system for print heads4c/8c pressure purge cleaning system.
G.W. / N.W.630kg / 470kc
Packing Size4.60m X 1.13m X 1.55m
Printing head Maintenance FacilityProtection Tray for auto purge, daily maintenance and print heads over night.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Sumisha Exim P.Ltd

Ellisbridge, Ahmedabad, Gujarat

View Number

Member Since 15 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Filtration FacilityDual American PALL Filter Ink Filtration System.
MotorImported Servo Motor with DSP pure digital controlling technology.
Linear RailTK (Made in Japan).
G.W. / N.W.630kg / 470kc
Printing head Maintenance FacilityProtection Tray for auto purge, daily maintenance and print heads over night.
Operation EnviromentPower Supply:- Single phase 50HZ/60HZ,220V,>15A, single phase Distortion : <2% Temperature : 18c - 26c Humidity : 40% - 70%
Media Feeding & take up SystemInfra Red Optical Controlling System for Media Feeding & take-up.
Heating SystemPre&After heater/Ink Per-heating system.
Auto-cleaning system for print heads4c/8c pressure purge cleaning system.
Packing Size4.60m X 1.13m X 1.55m

Fire-new Print head's Design and production techniques: - Produced by the work line which was put into production in 2007 that located in XAAR headquarters in Cambridge, U.K. From design to production techniques, all had been improved greatly, then the performance is much better then other products with 28-35 PL Drop volume and 10 - 14K Firing frequency.

Dual inlets ink Supply System: - Compare with the design of single ink inlet, this design could guarantee the sufficient ink supplying in high speed printing mode and free from air bubbles in inks.

Auto temperature Compensation System in Print head: - Exclusive Auto temperature compensation function in print head, which could adjust the print head's voltage automatically according to the data that provide by internal temperature monitoring system to smooth the ink jetting.

The exact configurations of equipment are subject to the real product

Smart P4/8H Technical And Mechanical Specifications Performance & Technical Specification

Model	Smart P4Head	Smart P8Head
Resolution	1440 dpi	1440 dpi
Printhead	U.K.XAAR Proton 4 print head	U.K.XAAR Proton 8 print head
Printing Width	3.2 m	3.2 m
Speed	3Pass 45m² 4Pass 35m²	Draft Mode : 102m² Prod. Mode: 65m²High Quality : 42m²
Color	16.7Million, CMYK	16.7Million, CMYKCMYK
Media Width	3.3m MAX	3.3 m MAX
Media Handling	Roll to Roll handling	Roll to Roll Handling
Media Types	PP Paper, advertising, banner, PVC mesh fabrics and vinyl etc.	PP Paper, advertising, banner, PVC mesh fabrics and vinyl etc.
Inks	Pigment solvent-based	Pigment solvent-based
Image Data format	TIFF, JPG, EPS, PDF	TIFF, JPG, EPS, PDF
Workflow	File printing, PRT/PRN/RTL/TIFF/BITMAP	File printing, PRT/PRN/RTL/TIFF/BITMAP
RIP	Scanvec Photoprint DX	Scanvec Photoprint DX
Control Station	Windows 2000/XP Workstation	Windows 2000/XP Workstation
