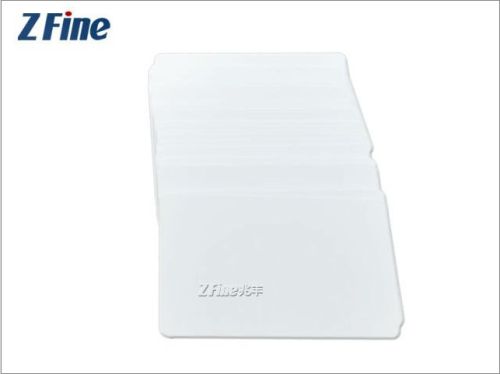

Inkjet Printing Lamination Sheet

We are offering inkjet printing lamination sheet.
1.material:pvc,pet;
2.size:standard 85.5*54mm;thickness not less than 0.35mm;
3.frequency:125khz or 13.56mhz or 915mhz;
4.specification:3*8,4*8,2*5 a4,etc.
5.automatic ultrasonic embedding process
our advantage:
*best quality
*fast delivery
*competitive price
*best serves
detailed description:
product name standard inlay
material pvc or pet
layout layout with 3*6-18pieces, 3*7-21pieces, 3*8-24pieces, 4*5-20pieces, 4*6- 24pieces,4*8-32pieces,5*5-25pieces,can be change
dimension 310mm x 468mm, max. Size 520mm x420mm, a4 210mm x297,
thickness hf normal 0.45mm,0.5mm, min.0.3mm ,
lf normal ,0.6mm, min. 0.5mm
uhf 0.6mm, 0.5mm
antenna hf: al etching,pre-winding copper coil, altrasonic embeding;
lf: pre-winding copper coli, al etching;
uhf: al etching
bonding lf: wire bonding,
hf: flip chip, wire bonding, moa2,
uhf: flip chip
read range more than 50mm with our reader
frequency 125khz or 13.56mhz or 915mhz
optional chip type mifare 1 s50/s70/i-code sli/ultrilight/fm11rf08/tk4100/em4200/temic t5577/u-code hsl/u-code-epc g2 etc.
work temperature -15°c~+55°c
main used in smart card patch,rfid tag,smart card kernel etc.
spare number 1.0‰
packing 200pcs/box,15000pcs/carton;carton size:50*24*15cm.
