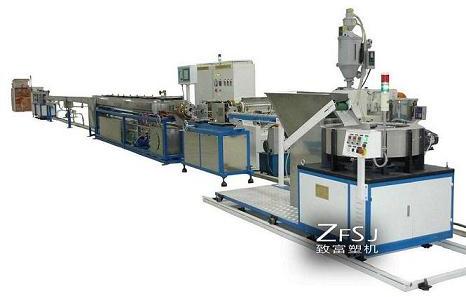

Inline Flat Dripper Drip Irrigation Tape Making Machine

Product Feature
1) It adopts centralized control by computer, having the characteristics of stable production process, easy operation, continuous production of finished goods with high efficiency.
2) Emitters feeding, choosing, transferring, storage, quantity-fixing supply and mosaic can be completed continuously and synchronously. Transfer speed can be adjusted according to production speed of drip irrigation pipe, ensuring that plastic emitters can be transferred to the bonding place of emitters on plastic pipe accurately and then bond them firmly.
3) Unique structure principle for Screw, die head, dimension-fixing cylinder and advanced materials and processing craft. Materials extruded have been plasticized evenly. Having a smooth surface of pipe-wall and stable size of dimension-fixing.
4) The vacuum water tank and cooling water tank are made of stainless steel.
Vacuum degree in vacuum water tank can be adjusted flexibly and accurately, and can be kept stable.
5) Might drying equipment can solve effectively water carrying in high-speed production.
6) It adopts two teeth type belt haul-up machine controlled with the help of frequency conversion technology, which traction speed can be adjusted synchronously. Traction speed is steady and noise is low.
7) The line adopts mechanical method for punching hole, in the meantime, it is equipped with residue recycling system. It has high speed of punching-hole (no residue).
8) The machine adopts double-station
rolling method, so it has the functions of changing roll without stopping machine. Wiring space, rolling tension and rolling length can be adjusted according to actual needs and have the functions of automatic stop and automatic alarm according to length-fixing.
Product Specification/Models
Machine model SJNX-90×30/1
Main driving power 55 kW
Max. extruding capacity 158 kg/h
Heating power 41 kW
Filter changing way Durable filter
Dripper supply speed 450 pcs /min
Driving power of tractor 2.2 kW×2
Driving power of hole drilling 0.4 kW
Hole drilling speed 450pcs/minding way automatic
Winding motor Servo motor
Water consumption 3.5 m3/h
Air consumption 2.5 m3/min Installation power 120kW
Overall dimension（L×W×H）35m×3 .5m×3 m
Application
This production line is used to make flat emitter drip irrigation tape. The mosaic flat emitter type drip irrigation tape is widely used in the field of farmland (cotton, etc.), vegetable and fruit trees and flowers.
