Contact SupplierWe are offering inline flat dripper irrigation system with marking line.

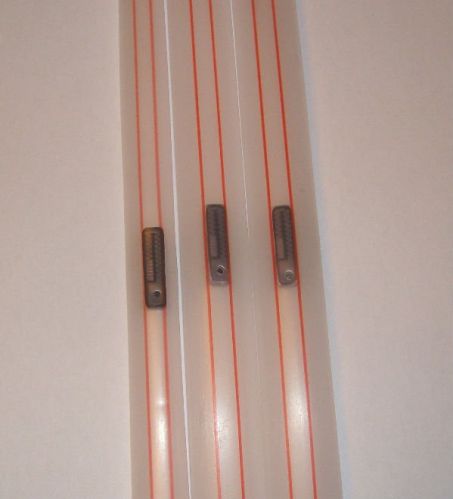

inline flat dripper irrigation system with marking line
feature:
1. The emitter has automatic filtering window, anti-blocking capacity is good.
2. It adopts turbulent flow passage design, water dripping volume is stable.
3. Water outflow cavity with large section which improves the ability of anti-blocking.
4. The dripper space has wide range of choice.
5. The inline flat dripper has been installed before leaving factory, which reduces the dripper installation fee and lowers the cost.
6. The paving length of the inline flat emitter type drip irrigation tape can reach up to 120 mm.
7. The characteristic of anti-corrosion is excellent.
8. The distance between the emitters can be adjusted according to the actual needs.
application: widely used in many fields, such as cropland, garden and greenhouse etc.
product parameter:
diameter
12mm, 16 mm, 20mm
wall thickness
0.2-0.9mm
dripper spacing
100-1000 mm
flow rate
1-3l/h
filter
120mesh
maximum paving length
120mm
length/roll
500-1000-1500-2000m/roll(adjustable)
