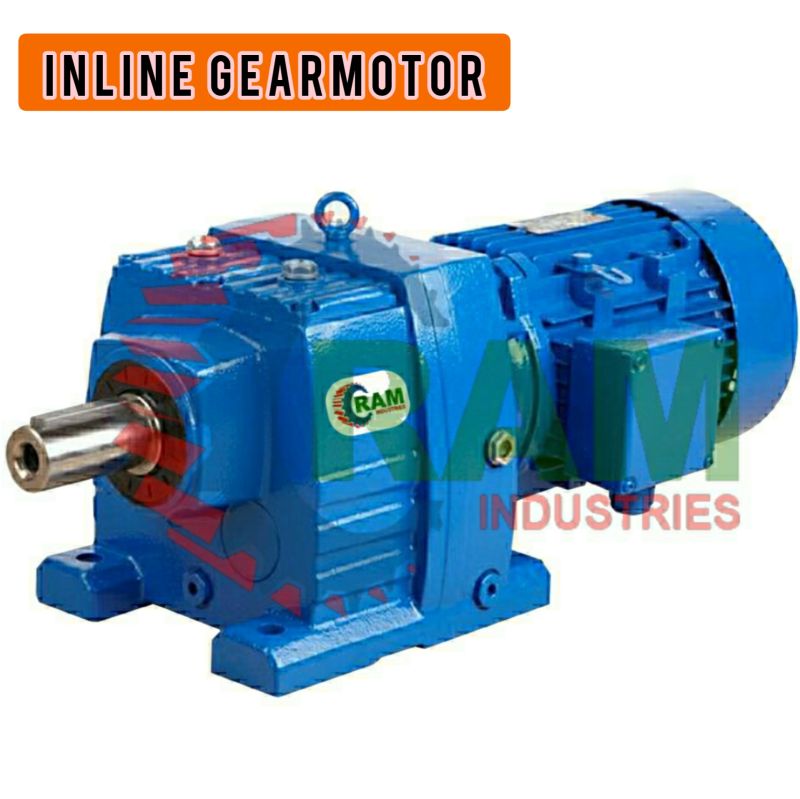

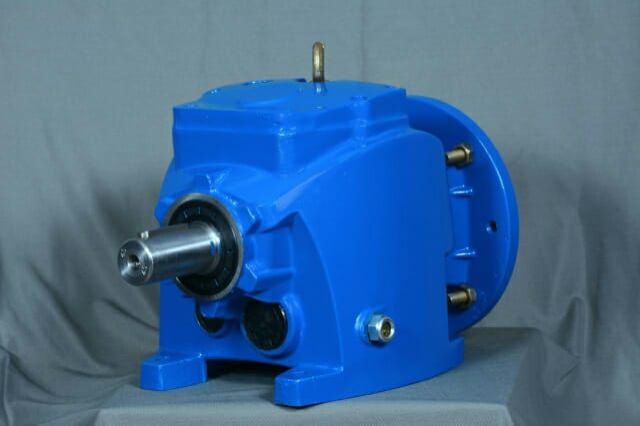

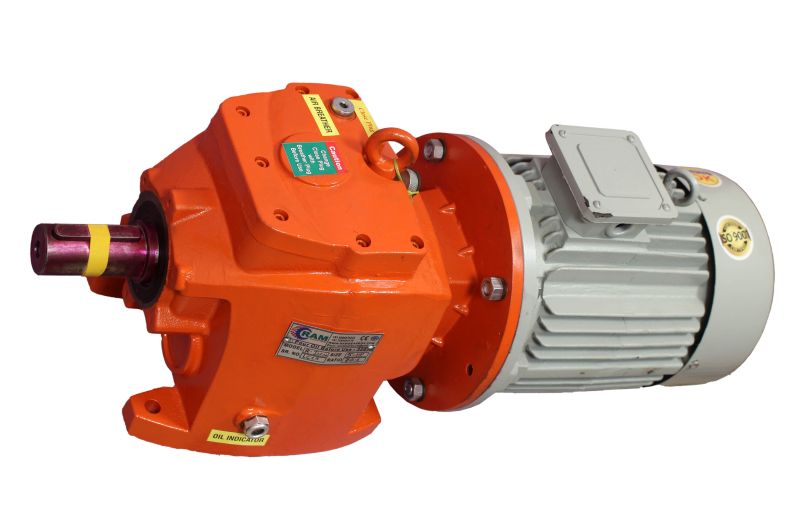

RAM Electric Polished Cast Iron Inline Geared Motor, Shape : Cylindrical

Inline helical gear motors are a type of mechanical device that combines the functions of a motor and a gearbox into one compact unit. The key feature of these gear motors is the use of helical gears. These gears are distinguished by the angled teeth on the gear wheel, which engage gradually, resulting in smoother and quieter operation compared to other types like spur gears. Helical gear motors are typically used in industrial applications where high efficiency, torque, and power transmission are needed. They are especially suited for continuous-duty applications and environments where noise reduction is a concern.   The RAM Inline Helical Gear Motor stands out in the category of helical gear motors due to its precision engineering, robust design, and versatility in a wide range of applications. Below is an in-depth description and explanation of its key features, working principles, advantages, and applications.     ---   Key Features of RAM Inline Helical Gear Motors:   1. High Efficiency: One of the key characteristics of RAM's inline helical gear motors is their high efficiency. Helical gears operate with a high degree of efficiency, often reaching levels of around 90–99%, depending on the specific configuration. This means that a large portion of the power supplied to the motor is converted into useful mechanical energy with minimal loss to friction or heat. This makes them highly energy-efficient, which is particularly important in continuous-duty applications.     2. Compact Design: RAM's inline helical gear motors are designed to be compact and space-efficient. By integrating the motor and the gearbox into a single, streamlined unit, the overall footprint is reduced, making it easier to install the gear motor in tight or restricted spaces. This compactness also helps reduce the overall weight of the unit, which can be crucial in applications where weight limitations are a factor.     3. Quiet Operation: The use of helical gears in RAM gear motors ensures a quieter operation compared to other gear types like spur gears. This is because the teeth of helical gears engage gradually rather than simultaneously. This results in less impact and vibration during operation, which in turn leads to reduced noise. For industrial applications, where loud mechanical noises can be a problem, the quiet operation of RAM inline helical gear motors is a significant advantage.     4. Smooth Power Transmission: Helical gears allow for continuous contact between the gear teeth, which results in smoother power transmission compared to other gear types. This smoothness reduces mechanical wear and tear, thereby prolonging the life of the gear motor and reducing maintenance costs over time.     5. Durability and Reliability: RAM inline helical gear motors are built with high-quality materials, ensuring durability and reliable performance in demanding environments. The gearboxes are typically made from hardened steel or other tough materials to withstand heavy loads, while the motor components are designed for longevity and resistance to wear and tear. This makes them suitable for harsh conditions such as high temperatures, heavy vibration, and corrosive environments.     6. Versatility in Speed and Torque: RAM gear motors provide a broad range of output speeds and torques to meet various application needs. They can be configured to deliver high torque at low speeds or low torque at high speeds, depending on the gearing ratio. This versatility allows the gear motors to be used in diverse applications, from conveyor systems to pumps and fans.         ---   Working Principle of RAM Inline Helical Gear Motors:   Inline helical gear motors operate on the principle of gear reduction. When the motor receives electrical energy, it converts it into mechanical energy, which is then transmitted to the gears in the gearbox.
