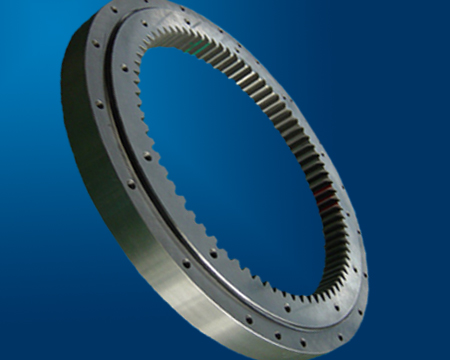

Inner Tooth Slewing Bearing, Turntable Bearing Ring

We are offering inner tooth slewing bearing, turntable bearing ring. . Has three seat, steel balls and isolation blocks.
2.up and down raceway arc angle is 90 degrees
double row different diameter ball slewing bearing
double row different diameter ball slewing bearing has three seat, steel balls and isolation blocks. It can be directly discharged into the upper and lower raceway, and arranged different top and bottom diameter balls based on force status. The assembly is very easy to open. Up and down raceway arc angle is 90 degrees, it can withstand large axial force and overturning force. When the radial force is more than 0.1 times the axial force, the raceway require special design. The axial and radial dimensions of double-row slewing bearing are large, and solid structure, especially suitable for that require above average diameter of the tower cranes, truck cranes and other handling machinery
they widely used in material handling equipments, mining machines, construction machinery, port machinery, wind power generation, medical equipments, radar and missile launchers and other large rotating devices.
double row angular contact ball bearing model:
note:
020 series: no tooth double row angular contact ball bearing
021/022 series:external tooth double row angular contact ball bearing
023/024 series:internal tooth double row anugular contact ball bearing
