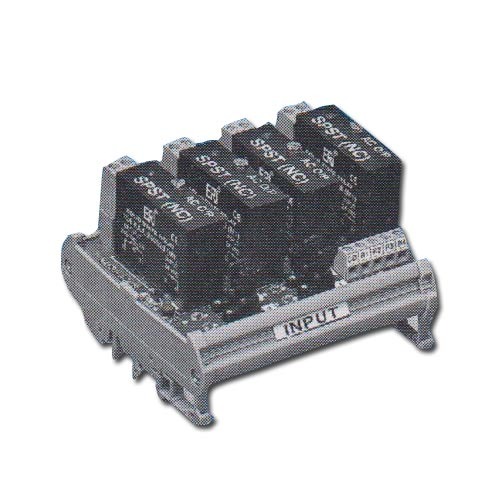

Input-Output Module Cards (25mA-5Amps)

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Both of our online and offline payment processing methods are secure for transaction offering you a reliable assistance. We thus accept all kinds of cash payments as well as bank transfers. Based in Hyderabad(India), our organization caters to the numerous requirements of the customers related to our products.

Features:

I/O Module Card available with standard 104/106/109/107/112/017/088 Series
I/O Module Cards available in one/two/four/eight/sixteen channels
Modules with built-in LED.
Input connection via screw type terminal blocks.
Noise-free interface
Enhanced serving life
Approx. Rs 4,000 / Piece

Specifications

Input Specifications				Output Specifcations
Packages/ Part No.	I/P ON	I/P OFF	I/P Curr	Load Curr	Load Volt	VTM	IDRM	Turn ON	Turn OFF
109 AO 241605	4-6 vdc	1.0 vdc	10 mA	16 A	280 vac	1.5 vac	1 ma	1/2 cycle	1/2 cycle
112 DO 100300	3-32 vdc	1.0 vdc	20mA	0.125	100 vdc	1.5 vdc	10 ma	1 ms	2 ms
107 AO 240500	3-32 vdc	1.0 vac	25 mA	3-5 A	280 vac	1.5 vac	10 ma	10 ms	10 ms
104 DI 032505	5vdc	1.0vdc	10A	25ma	30vdc	0.4vdc	100ms	05ms	05ms
