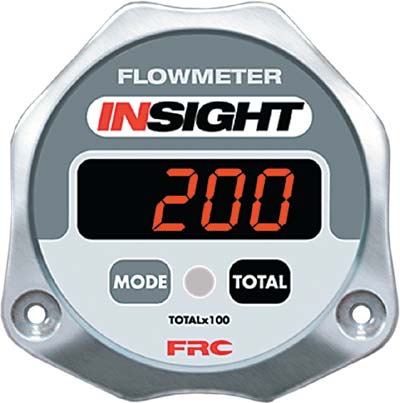

Insight Flow Meter

Based in Alabama, US we are the key manufacturers, exporters and suppliers of the Insight Flow Meter. These are usually used in the fire apparatus where the flowing water can be unsteady and turbulent. It is a high end device that is compact and light weight with display dimensions of 3.26" wide x 3.25" high, 2.72" panel cutout. It consumes minimal space and comes with a built in rugged that can withstand extreme conditions. Some salient features include Push Button Totalizer, All Aluminum Housing, Simple Installation, Push Button Calibration, Linearizer Feature, Paddlewheel Style Flow Sensor, Internal Micro-Processor, Safeflow Feature and FRC Datalink. The supply voltage is 9-30 VDC and Supply Current is 0.5 Amp. You can set the flow rate for any diameter by way of push buttons that are located in the front. It is connected to a sensor of primary display. All flow sensors are paddlewheel type. It is mandatory for you to cater to the installation requirements to ensure proper flow of sensor. The accuracy will depend on the choice of plumbing made during installation.

The Insight System :

• All Insight displays are the same and can be set to display the flow rate for any diameter pipe by using the push-buttons located on the front of the display.
• An Insight display directly connected to the sensor is called the primary display.
• An Insight display that shows the same flow as the primary is the remote display. Connecting a remote display to FRC datalink cable and then configure it tomatch the primary through the push-button interface.
• An Insight display configured to show the actual flow rate of several discharges is called a summing display. Connect an Insight display to the datalink and then configure it as a summing display through the push-button interface.
• An Insight display configured to show the total accumlated flow rate through several discharges is called an accumulatinging display. Connect an Insight display to the datalink and then configure it as an acculumatinging display through the push-button interface.
• Calibration of the Insight to a known reference can be performed by using the push-buttons located on the front of the display.
• All flow sensors are paddlewheel type.
