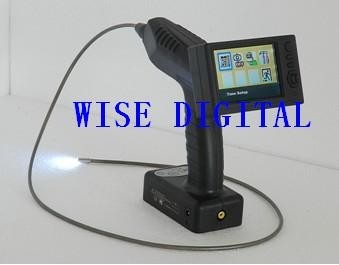

Inspection Borescope

PBD2-R series Portable Video Borescope is the new model detection equipment which has the features of light weight, user-friendly design of hand-held, built-in adjustable super bright LED light source. You can take the real-time photographs and video by the buttons in the right of the display, and equipped with the SD Memory Card with 2GB capacity, then it can save images and videos, playback and delete operations.
SPECIFICATION:
Sensor:1/10" Remote Head Camera System
Head diameter:4.5mm/6mm/8mm(Optional)
Working length:1m-3m(Optional) Angle of view:95 degree;
Viewing Direction:Forward view
Forward view:2 ways of articulation
Bending angle:90degree;~120degree;
Light source:Super Bright LED Lamp
White balance:Auto/Manu
Insert Tube:Stainless Steel Braided / Plastic Hoses (Optional)
Output:AV
Display:3.5" color LCD
Electrical source:Rechargeable Battery (working time 4 hours)
Optics lens:Focus lens
Video format:NTSC
Image record:Video record, deposit, Image capture Capability:Support 2GB SD card
Working Temperature:-20 degree~80 degree
Waterproof:Yes
APPLICATION AREAS With the features of waterproof and oil proof, it can be used in a variety of pipelines (pipes, tubing, trachea) and cylinder inspection. Varieties of machinery and equipment\engine inspection. Transport (car\plane\ship) inspection. The place where people can't enter to detection as the security and space limitations inspection. Dangerous environment inspection------somewhere has hazardous gas and liquid. Police, public safety, antiterrorism, customs check smuggling, rescue, etc.
