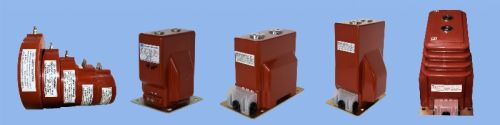

Instrument Transformer

Listing ID #4232309

  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

Features Designed and Verified according to IEC 61869-2 Various standard product line Suitable for tariff metering Specialised in customised products Compact and light weight Convenient....
View More Details
Send Enquiry

Company Information

  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

Features
  • Designed and Verified according to IEC 61869-2
  • Various standard product line
  • Suitable for tariff metering
  • Specialised in customised products
  • Compact and light weight
  • Convenient installation and replacement
  • High electrical and mechanical performance
  • No partial discharge at operating voltage
  • Reliable quality and long lasting durability
  • Casting epoxy resin body ensures high mechanical strength and insulation performance
  • Transparent and sealable secondary terminal cover as an option
Specification
  • Highest system voltage: 660V to 36kV
  • Rated primary current: 5A to 5000A
  • Rated secondary current: 1A / 5A
  • Rated accuracy class
  • - Metering: 0.2s, 0.2, 0.5, 1.0
  • - Protection: 5P, 10P
  • Rated short time thermal current: 75In to 50kA/ 1s to 3s
  • Rated frequency: 50Hz
  • Rated continuous thermal current: 120%, 150%, 200%


Company Details close-icon

"Excel Power" Switchgear Pvt Ltd is a state-of-art manufacturing company offering Type Tested Medium Voltage Switchgear and Panels up to 33kV system voltage, Low Voltage Panels, Control &Relay Panels, LV/MV Bus ducts, Instrument Transformers both indoor/outdoor and up to 33kV system voltage, Epoxy components & Bushings, Painted Enclosures and Bus bar components using CNC machines to meet both domestic and international customers.
"Excel Power" with a team of experienced engineers/workforce and with complete range of modern imported machineries, highly sophisticated testing instruments manufactures a wide range of reliable and dependable switchgears and panels which are widely recognized by all clients and consultants.
"Excel Power" has the competitive advantage for the range of product it manufactures and reliable after sales support which is most sorts by all clients/customers.
"Our vision is to work together as a Team, to be always customer centric, global acceptability of our products, positive in every action, successful in every operation, to create unprecedented happiness and wealth among loyal employees, continuous contribution for social harmony". Our vision serves as the framework for our roadmap and guides every aspect of our business by describing what we need to accomplish in order to continue achieving sustainable, quality growth.
Our Mission is to produce competitively priced high quality products, supported by reliable after-sales services. The success resulting from our high quality manufacturing operations and designs emboldens the company to progressively capture wider markets.
