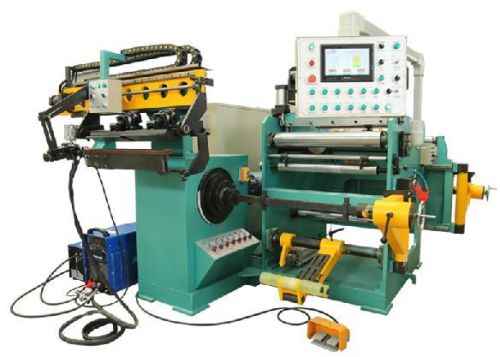

Insulated Copper Foil Winding Machine, Brand Name : Dirake

High speed automatic foil winding machine for transformer and reactor 600 :
clamping core foil winding machine for power transformers and reactors industry foil line
laps wound. Foil coil or in a different thickness of copper foil with a conductor, like broadband
insulating material for interlayer insulation, complete wound on the winding machine, formed into a roll-shaped coil.
Meanwhile end a coil inside and outside surface dressing. The shape of the coil may be circular, elliptical, rectangular
and the like.
Main components of the machine:
1. Foil material uncoiler
2. Feeding wool pressure device
3. Winding device
4. Insulation unwinding device
5. Correction system
6. Main frame
7. Automatic welding equipment
8. Pneumatic devices
9. Electrical system
main technical parameters:
item
technical parameters
product name
foil winding machine
model
brj600
height of coil
600mm
thickness of foil
0.1-2.0 mm
max. Diameter of coil
î¦ 750mm
form of coil
square; rectangular; round
winding speed
0-30rmin speed stepless
welding speed
0-0.8rmin speed stepless
max. Tension of foil tape
3500n stepless and adjustable
winding power
4kw*2
welding methodspeed
tig0-0.8rmin
rectification accuracy
â±0.5mm
dimensions
2600*2100*4800mm
