Insulating Flange Kit

Insulating Flange Kit is essentially used for pipeline flange corrosion protection, where a seal is required between dissimilar flange materials. The use of dissimilar metallic flanges with a conductive gasket material accompanied with a suitable electrolyte may set up a galvanic cell which will corrode the anodic metal. Insulating Flange Kit is also used to electrically isolate flange joints, preventing the flow of electrostatic charge along pipelines. We provide the clients with high quality Insulating Flange Kit at the most reasonable price range. This Insulating Flange Kit is made by using high quality raw materials and has been highly appreciated in the market.
Highlights :

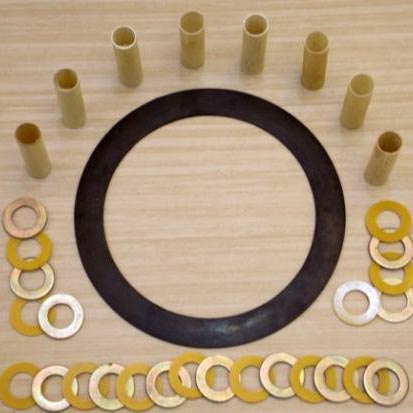

• The insulating gasket set consist of one gasket; with one sleeve, two insulating washers and two steel washer for each bolt in line with ASME B16.5 flange.
• There are three standard Types of insulating sets available to suit raised face, flat face, and ring grooved flanges, as illustrated below :

  • Goodrich Insulation Gaskets For Type "F" Raised Face Flanges
    In this type, the central gasket is designed to be located inside the flange bolt circle and sits fully on the raised face porting of the flange. This type of gaskets will be supplied in all the materials like Phenolic and Glass / Epoxy with Neoprene Rubber coating.
  • Goodrich Insulation Gaskets For Type "E" For Full Face Flanges
    In this type, the central gasket has its outside diameter as equal to that of flange outside diameter and precision cut bolt holes. This design helps easy alignment of the gaskets during installation. Type "E" gaskets are available in Neoprene faced reinforced Phenolic / Glass Epoxy material or other materials in Table.
  • Goodrich Insulation Gaskets For Type "D" For Ring Joint Gaskets
    In this type the gaskets are available in fabric reinforced Phenolic or Glass Epoxy. Available in basic "Oval & Octagonal" type. This type has the contact faces with oval shape. It provides a high reliability seal. These gaskets comply with ASME B16.20.
