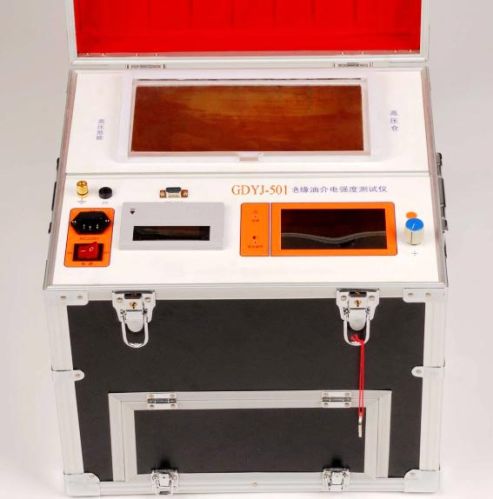

Contact SupplierWe are offering insulating oil breakdown voltage tester.
I.functions:
1. Breakdown test of user-defined
2. Proof test
3. Calibration interface for customers
4. Uploading data to pc and making word report automatically.
5. Result print
ii.technique index:
1. Output voltage: ac 0~80kvac 0~100kv
2. Rate of voltage rise: 2kvs±10%
3. Measuring precision: 3%rdg+0.3%fs
4. Test times setting: 1-9
5. Mixing time setting: 0~99 second
6. Waiting time setting: 0-9 minute 59second
7. Maximum storage capacity: 100 groups of test data
8. Test standards: iec60156
9. Display: 256´128 lcd
10. Rated power supply: ac 220v±10% 50hz60hz
11. Environment temperatures: 0-50°c
12. Relative humidity ≤80%rh
13. Size: 420mm×380mm×410mm
14. Weight: 28kg
