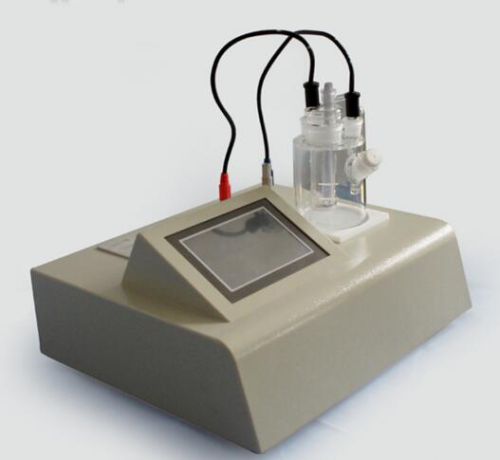

Insulating Oil Trace Moisture Analyzer

General information:
insulating oil trace moisture analyzer used powerful next-generation processors and peripheral circuit of new, excellent low-power operation makes it possible to compact battery, enables portable function; criterion for measuring electrode signal for the electrolysis end, its stability and accuracy are key factors affecting the measurement accuracy, due to the use of advanced devices and methods to achieve precise measuring electrode signal detection; further insight into the characteristics of electrolyte, puts forward a new software compensation correction algorithm, improves the accuracy of measurement; chinese characters graphic lcd screen, display the interface intuitive and friendly.
Note: the user matching battery may act according to the actual demand in order to achieve portable feature.
Features:
1. Used 240*128 graphic dot matrix liquid crystal.
2. Low power consumption.
3. High-precision, and it has a strong anti-jamming capability.
4. Three formulas for users to choose, automatically calculate the moisture content.
5. Automatic detection function
6. Automatically stored with time stamp historical records, store up to 255.
7. With screen protection function.
8. Usb interface
specification:
1 method karl fischer coulometric titrator principle
2 type portable
3 measuring range 0ug-100mg
4 resolution 0.1ug
5 the largest electrolytic speed 40 ugs
6 power supply voltage ac220v ±20%( customization)
7 largest power 30w
8 work temperature 10~35ºc
9 work humidity
