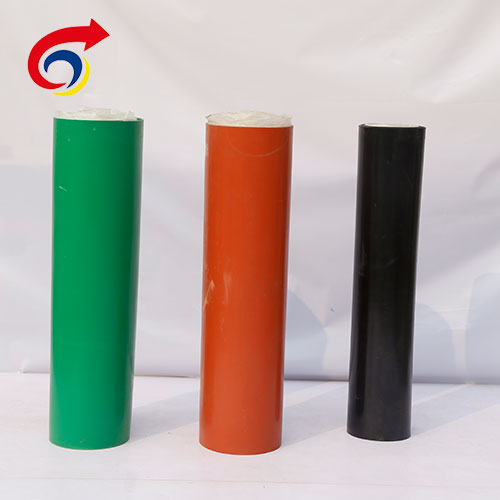

Description of Insulating Rubber Sheet
Insulating Rubber Sheet, also known as an insulating blanket, insulating pad, insulating rubber plate, insulating rubber, insulating rubber mats, insulation and plastic, rubber insulation, insulation pads, etc.。It has a larger volume resistivity and resistance to electrical breakdown. This mat often used as table or floor insulation materials distribution and other occasions.
Standard:HG2949-1999
The product is made of rubber. Being vulcanized. It serves as goof electrical insulation. It is flexible and antislip. It can be mainly used as ground insulation and very suitable for power, telecommunication and other industries.
Â
We could offer the follow rubber sheet :
Industrial rubber sheet: SBR, NBR, EPDM rubber sheet
Anti-slip rubber sheet: Round button ,Checker, wide/fine ribbed
Livestock rubber sheet: Round dot, I pattern, Small squared.
Â
Parameters of Insulating Rubber Sheet​
| Thickness | Weight | Maximum Voltage | Standard specification |
3mm | 5.5 kg/m2 | 5 kV | 10m/roll, 50kg/roll |
5mm | 9Â kg/m2 | 10Â kV | 5m/roll, 10m/roll, 50kg/roll |
6mm | 11Â kg/m2 | 12KV-15Â kV | 10m/roll, 50kg/roll |
8mm | 14.5Â kg/m2 | 25Â kV | 5m/roll, 50kg/roll |
10mm | 18Â kg/m2 | 30KV-35Â kV | 5m/roll, 50kg/roll |
12mm | 22Â kg/m2 | 35Â kV | 5m/roll, 50kg/ro |
Packing: Plastic bags wrapped+woven bags+wooden pallets | |||
