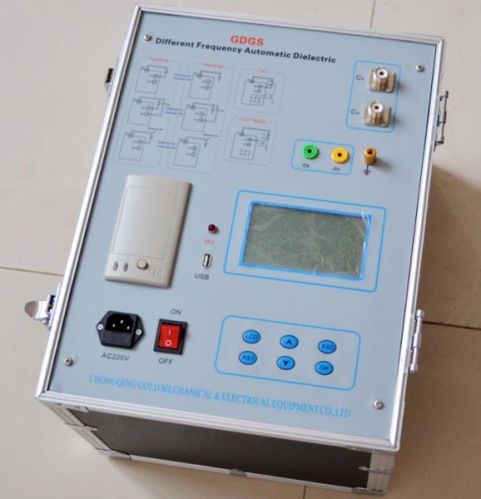

Contact SupplierWe are offering insulation material dielectric loss tester.
I.application
gdgs automatic tan delta tester is applied to measure the dielectric loss and capacitor value of insulation materials in high voltage power equipment.
The non-power frequency voltage source is integrated in the tester to avoid power frequency interference.
Good performance in measurement precision.
ii.technique index
1. Measurement error:
capacitor value: 1%rdg+5pf
tangent delta: 1%rdg+0.04
2. Output voltage:ac 0.5kv~10kv
3. Testing voltage setting resolution: 0.5kv
4. Maximum output capacity: 200ma
5. Testing frequency: 45hz55hz
6.test mode: fully automatic
7. Power supply: ac220v±10% , 45hz55hz
8. Environment temperature: 0-50°c
9. Humidity: ≤85%rh
10. Weight:40kg
11.outer size :470*320*390mm
