    Insulation Resistance Testers

    Insulation Resistance Testers

    ₹ 37,065 / Piece
    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

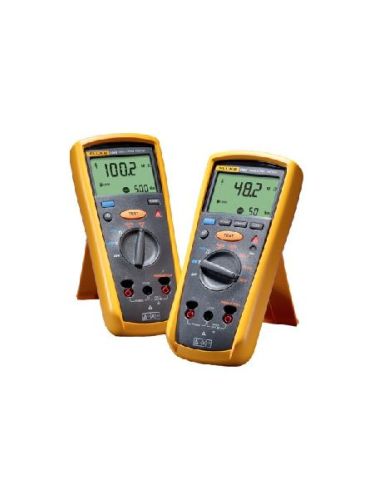

    Fluke 1507 and 1503 Insulation Testers are compact, rugged, reliable, and easy to use. With their multiple test voltages, they are ideal for many troubleshooting, commissioning, and preventative....
    View More Details
    Send Enquiry

    Company Information

    Instrukart Holdings
    location Sanat Nagar, Hyderabad, Telangana
    View Number
    • calendar Member Since 9 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    Fluke 1507 and 1503 Insulation Testers are compact, rugged, reliable, and easy to use. With their multiple test voltages, they are ideal for many troubleshooting, commissioning, and preventative maintenance applications.



    Features

    • Read measurements easily with large, backlit display

    • CAT IV 600 V overvoltage category rating for added user protection

    • Remote probe, test leads, probes and alligator clips included with each tester

    • Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work

    • Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests

    • One year warranty


    Fluke 1507 and 1503 Insulation Testers has additional features, like the remote probe on these tools save both time and money when performing tests.

    Technical Specifications:

    AC/DC Voltage Measurement



    Accuracy



    Range



     600.0 V



    Resolution



     0.1 V



    50 Hz to 400 Hz ± (% of Rdg + Digits)



     ± (2 % + 3)



    Input impedance





     3 MΩ (nominal), < 100 pF



    Common mode rejection ratio (1 kΩ unbalanced):





     > 60 dB at dc, 50 or 60 Hz



    Overload Protection





     600 V rms or dc



    Earth bond resistance measurement



    Range/Resolution



    20.00 Ω



     0.01 Ω



    200.0 Ω



     0.1 Ω



    2000 Ω



     1.0 Ω



    20.00 kΩ



     0.01 kΩ



    Accuracy





     ± (1.5 % + 3)



    Overload Protection





     2 V rms or dc



    Open Circuit Test Voltage





     > 4.0 V, < 8 V



    Short circuit current





     > 200.0 mA



    Insulation specifications



    Measurement Range



    1507:



     0.01 MΩ to 10 GΩ



    1503:



     0.01 MΩ to 2000 MΩ



    Test voltage



    1507:



     50 V, 100 V, 250 V, 500 V, 1000 V



    1503:



     500 V, 1000V



    Test Voltage Accuracy





     + 20 %, - 0 %



    Short circuit current





     1 mA nominal



    Auto Discharge





     Discharge time < 0.5 second for C = 1 µF or less



    Live circuit indicator





     Inhibit test if terminal voltage > 30 V prior to initialization of test



    Maximum Capacitive Load





     Operable with up to 1 µF load



    Measure Accuracy:



    50 V:



     ±(3 % + 5)



    100 V:



     ±(3 % + 5)



    250 V:



     ±(1.5 % + 5)



    500 V:



     ±(1.5 % + 5)



    1000 V:



     ±(1.5 % + 5) to 2000 MΩ, ±(10 % + 3) above 2000 MΩ
