Insulation Testers

We are offering insulation testers

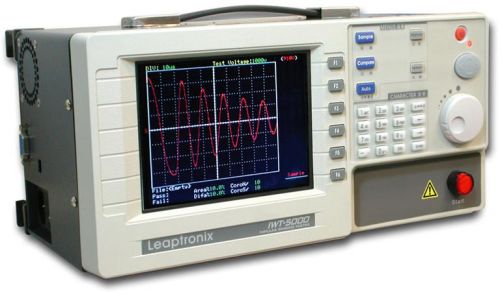

leaptronix iwt-5000 is an impulse winding component tester is a coil testing instrument with self-insulating property, which can be used to test the insulating situations of coil layers, jumpers and jacks caused by winding materials, magnetic materials and framework. 500v~5000v programmable pulse voltage setting, 100mhz high-speed sampling rate, non-destructive testing, etc, can detect ill-insulating winding components.
* 500v-5000v, non-destructive testing
* sample rate: 100mhz
* offers 4 kinds of detection comparison to test the bad insulation of the coil easily
* areasize comparison detection mode
* diffzone comparison detection mode
* corona amount comparison detection mode
* corona number comparison detection mode
* measurement function for voltage, timing, and frequency
* usb 2.0 to connect to a pc
* external i/o for handler and other testing systems
* 100 sets standard waveform setting
* 320x240 color lcd display
