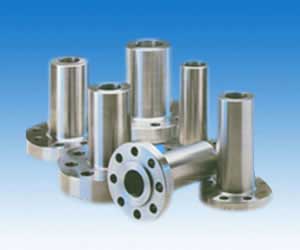

Integral Flanges

We are recognized as one of prominent Integral Flanges Manufacturers and Exporters in India. The Integral Flanges supplied by us are highly efficacious and render consistent performance. We provide Integral Flanges that are dimensionally accurate and thus ensure perfect fitting. Salient Features :

• Sophisticated design
• Rugged construction
• Long functional life
• Anti-corrosive finishing
• Cost- effective
• Industrial Processes :
  • Machining
  • Forging
  • Industries We Serve :
    • Power generation
    • Natural gas
    • Chemical
    • Petroleum
    • Papermaking
    • Metallurgy
    • Shipbuilding
    • Heating
    • Size :
      • Integral Flange : 38"~80"
      • DN10~DN2000
      • Pressure :
        • American Series : CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500
        • European Series : PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400
        • Flange Facing Types :
          • American Series : Flat Face (FF), Raised Face (RF), Tongue (T), Groove (G), Female (F), Male (M), Ring Joints Face (RJ)
          • European Series : Type A (Flat Face), Type B (Raised Face), Type C (Tongue), Type D (Groove), Type E (Spigot), Type F (Recess), Type G (O-Ring Spigot), Type H (O-Ring Groove)
          • Materials :
            • Carbon Steel : A105
            • Alloy Steel : A182 F 1-F 2-F 5-F 9-F 10-F 91-F 92-F 122-F 911-F 11-F 12-F 21-F 22
            • Stainless Steel : A182 304-304H-304L-304N-304LN 316-316H-316L-316N-316LN 321-321H 347-347H
            • Low Temperature Steel : A522 A707 Grade L 1-L 2-L 3-L 4-L 5-L 6-L 7-L 8
            • High Performance Steel : A694 F 42-F 46-F 48-F 50-F 52-F 56-F 60-F 65-F 70
            • Standards :
              • GBT9112-2000
              • GBT9124-2000
              • GBT13402-1992
              • HGT20592-2009 HGT20614-2009
              • ASME B16.5-2009 ASME B16.47-2006
              • API605-1988
              • MSS SP 44-2006
              • HGT20615-2009 HGT20623-2009 HGT20635-2009
              • CSA Z245.12-05-2005
              • EN1092-1-2007 EN1759-1-2004
              • BS1560-3.1-1989 BS4504-3.1-1989
              • AFNOR NF E29-200-1-2007
              • ISO7005-1-1992
              • AS2129-2000
              • JIS B2220-2004
              • GBT9113.1-2000 GBT9113.2-2000 GBT9113.3-2000 GBT9113.4-2000
