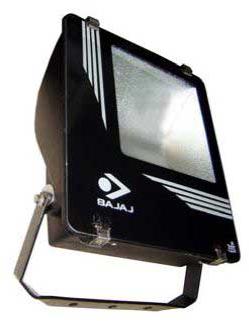

Integral Floodlights

MaterialDie-cast Aluminium Housing,Anodized Aluminium Reflector,Toughened Glass Cover,M.S. Mounting Bracket
Brand NameBajaj
FeatureIntegral Control Gear,Heat Resistant,Clear Toughened Glass,Pre-wired Up To Terminal Block,Mounting Bracket With Aiming Facility
Number Of FlowerFloodlights
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Brand NameBajaj
MaterialDie-cast Aluminium Housing,Anodized Aluminium Reflector,Toughened Glass Cover,M.S. Mounting Bracket
Number Of FlowerFloodlights
FeatureIntegral Control Gear,Heat Resistant,Clear Toughened Glass,Pre-wired Up To Terminal Block,Mounting Bracket With Aiming Facility
SpecificationsEpoxy Black Powder Coated,GES Lamp Holder For 250/400W SV T Lamp,Electrochemically Brightened
Degree Of ProtectionIP 65
Used InHigh Mast Lighting,Airport Aprons,Container Berths,Railway Marshalling Yards,Sports Lighting,Hoarding And Sign Boards,Areas With Corrosive Chemical Vapors Or Saline Atmosphere

We are offering integral floodlights. as a reputed bajaj integral floodlights manufacturer, we bring forth only quality integral floodlights. These integral floodlights are manufactured in adherence to the standard quality parameters to offer superior quality service. Our integral floodlights offer high intensity lighting and are widely used in areas where there is need of excellent illumination in wide area. used in

high mast lighting
airport aprons
container berths
railway marshalling yards
sports lighting
hoardings and sign boards
areas having corrosive chemical vapors or saline atmosphere

specifications

epoxy black powder coated, die-cast aluminium housing with integral control gear for 250/400w hpsv/mh t lamp
electrochemically brightened, anodized aluminium reflector
heat resistant, clear toughened glass cover secured to the housing by self locking toggles and synthetic rubber gasket
ges lamp holder for 250/400w sv t lamp pre wired up to the terminal block
epoxy black powder coated m.s. Mounting bracket with aiming facility
degree of protection : ip 65

Electrical Data

Product Code	Model	Lamp Type & Wattage (W)	Nominal Voltage (V)	Mains Current in Amps. At 240 V	Capacitor Mfd.	Power Factor
162610	BJFL 250 SV T S	HPSV T 250	220/240	1.30	30	≥0.85
162612	BJFL 400 SV T S	HPSV T 400	220/240	2.10	42	≥0.85
162611	BJFL 250 MH T S	MH T 250	220/240	1.30	30	≥0.85
162621	BJFL 400 MH T S	MH T 400	220/240	2.10	42	≥0.85
162623	BJFL 250 SV T AS	HPSV T 250	220/240	1.30	30	≥0.85
162625	BJFL 400 SV T AS	HPSV T 400	220/240	2.10	42	≥0.85
162624	BJFL 250 MH T AS	MH T 250	220/240	1.30	30	≥0.85
162622	BJFL 400 MH T AS	MH T 400	220/240	2.10	42	≥0.85
