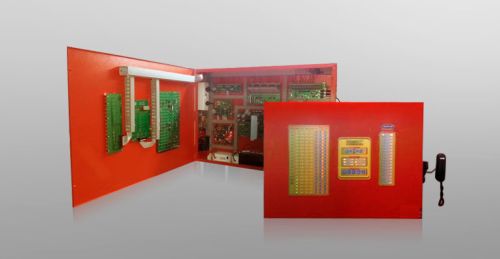

Integrated Alarm System

KEY FEATURES

• INTEGRATED ALARM SYSTEM CONSISTING OF 14 ZONE FIRE ALARM SYSTEM WITH 14 ZONE AMPLIFIER.
• 200 LOG EVENTS STORAGE FOR FIRE EVENTS.
• VOICE EVACUATION
• FIRE DRILL FACILITY
• ONE MAN WALK TEST
• ADJUSTABLE SOUNDER SETTINGS

SPECIFICATIONS

SYSTEM COMPONENTS
In-built 14 zone fire alarm(12 volt) In built Public Address (amplifier) for 14 zones. [120 Watt] Menu Settings:

• Sounder Setting(2-59 mins)
• Fire Drill
• Evacuate
• Log (200 Events)

LCD INDICATIONS ON PANEL
Mains on
Battery On
Battery Low
Battery Charging
Zone Conditions
Date and Time
LED INDICATIONS ON PANEL
System On Mains On Battery On Battery Low Battery Charging Zone Indications

• Fire
• Normal
• Open
• Short
• Isolate(Zone + Public Address)

SPECIAL FEATURES
In case of Fire the Sounder in the particular zone will start ringing for the set sounder time , then the sounder will start ringing in the floor above the affected floor for the set sounder time and then the sounder will start ringing in the floor below the affected floor.
The Amplifier will normally be in the OFF state, in case of fire the amplifier will automatically be switched on and the sounders will go in alarm state and will be ready for any announcement.
