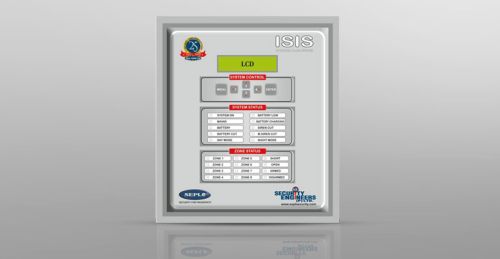

Integrated Burglar Alarm

KEY FEATURES

• 18 ZONES SYSTEM (8 ZONES WIRED + 10 ZONES WIRELESS)
• SYSTEM CONTROL (TRIGGER/ RESET/ SILENT/ ARM/ DISARM) OVER CELLULAR PHONE.
• SYSTEM CONTROL VIA WIRELESS KEY-FOB
• AUTOMATIC & MANUAL DAY/ NIGHT CHANGE OVER REMOTE MONITORING VIA LAN CARD OR REMOTE KEYPAD
• CONFIGUREABLE USER SETTINGS (SOUNDER TIME/ ENTRY-EXIT DELAY/ ZONE SETTINGS) 250 LOG EVENTS
• ALL WIRED ZONES & SOUNDERS HAVE TAMPER DETECTION FACILITY

SPECIFICATIONS

GENERAL
CPU: Microcontroller
Operating Voltage: 12V
Standby Batteries: One
Power Supply: 45 Watt
Mains: 90 - 270V AC
Input: 15V
Output: 15 Regulated
Charging Method: Intelligent Trickle Charging
End of Lien Resistor: 3.3 K (One Per Zone)
USER CONTROL
Key Pad: Onboard 6 Key Pad for User Configurable Setting
REMOTE MONITORING
Support Type: Remote Keypad or Lan Card
CONSTRUCTION
Material: CRC Sheet
Cable Entry: 10 Top Knockouts
ENVIRONMENT OPERATING LIMITS
Temperature: 0°C - 50°C
Humidity: 90% to 95% RH Condensing
DISPLAY
Zone Display: LED & LCD
LCD Display: Functional Zone, Signal Strength (GSM1000) System Power
LED'S: Armed, Disarmed, Open, Short, System On, Mains On, Battery On, Zone (1- 8), Battery Cut, Battery Charging, Battery Low, Siren Cut, Motorized Siren Cut, Day, Night
DIMENSIONS
Length*Breadth*Depth: 325mm*275mm*85mm
Weight: 2kg
CERTIFICATONS
Certifying Body: ERTL (East)
INPUTS
No. of Zones: 8 Wired & 10 Wireless
DVR Integration: One
Input Type: Normally Open Circuit
OUTPUTS
Sounder Output: Two
Internal Sounders: One
Auto Dialer: Internal
Auto Dialer Supported: PSTN/ GSM
