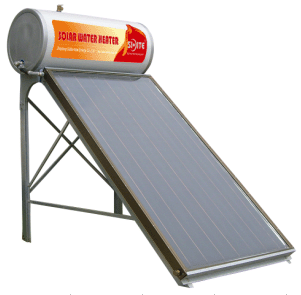

Integrative Pressurized Flat Palte Series(sp-f), Brand Name : sidite

Advantages:
1) simple structure, easy installation
2) Efficient heat insulation
3) Reliable performance
4) Good quality and reasonable price
Specification of flat plate solar collector:
1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.
2) Tinox blue titanium or black chrome coating have very high absoption rate to ensure the
high efficiency.
3) Whole-plate ultrasonic welding technology makes the flate plate solar collector more beautiful,
efficient and durable.
4) Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high
pressure without leakage.
Specification of split pressurized water tank
1) Inner tank: SUS 304-2B food grade stainless steel or porcelain enamel
2) Outer tank: color steel or stainless steel
3) Capacity: 100L, 150L, 200L, 250L, 300L
4) Heat preservation: 72 hrs
5) Testing pressure: 9 bar
Model SD-F-100 SD-F-150 SD-F-200 SD-F-250 SD-F-300
Tank capacity(L) 100 150 200 250 300
Inner tank 2B food grade SUS 304&316 stainless steel or porcelain enamel
Outer tank color steel sheet or galvanized sheet
Electrical booster 1.5KW 1.5KW 1.5KW 1.5KW 1.5KW
Insulation thickness(mm) 55 55 55 55 55
Working pressure 8 bar 8 bar 8 bar 8 bar 8 bar
Collector size(mm) 2000*1000*88 2000*1000*88 2000*1000*88 2000*1000*88 2000*1000*88
Collector No.(pcs) 1 1 2 2 2
Aperture area(m2) 1.84 1.84 3.68 3.68 3.68
Absorber coating Tinox blue titanium coating or black chrome coating
