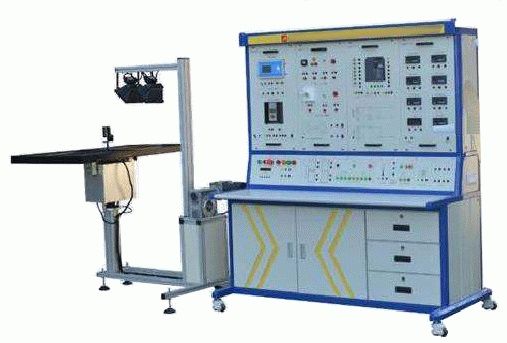

Intelligent Grid Management System

Intelligent Grid Management System which includes the following

as a minimum

• 3 phase Double Bus Bar Distribution system with transmission
• line system and protection relay
• Energy Management system with Static and Dynam ic loads
• SCADA Panel Designer
• SCADA PLC
• 3 Phase Grid tied Photovoltaic system
• Industrial Battery storage systems which integrates into grid
• and remote-control using SCADA
• Topics covered by the system as a minimum Hardware training

Requirement of the intelligent Grid System:

• Intelligent Grid System
• Training contents:
• Basic circuits of a three-pole, double busbar system
• Three-phase, double busbar system with load
• Busbar changeover without interruption of the branch
• Preparation of algorithms for various switching operations
• Busbar coupling

Investigations on Three-phase Transmission Lines

• Training contents:
• Voltage increases on open-circuit lines
• Voltage drop as a function of line length
• Voltage drop as a function of cos-phi
• Capacitive and inductive power losses on a line as a function of V and I
• Phase shift on a line
