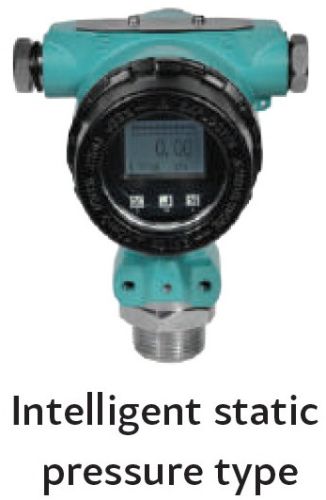

5kHz~650kHz Intelligent Static Pressure Transmitter

₹ 5,800 - ₹ 11,200 / Piece

MOQ10 Piece
Frequency5kHz~650kHz
Power Supply24VDC
output signal4~20mA, 1~5V, 0~20mA, 0~5V, etc.
Accuracy0.065 %FS, 0.035(optional), 0.1%
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 1 Year
Nature of Business Manufacturer
GST No. 07ABMCS3475M1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Power Supply24VDC
output signal4~20mA, 1~5V, 0~20mA, 0~5V, etc.
Accuracy0.065 %FS, 0.035(optional), 0.1%
Frequency5kHz~650kHz
Electrical ConnectionM20*1.5
Overloading Pressure200%F.S
Storage Temperature-50~85°C
Medium Temperature-40~100°C
Sensitivity Temperature Drift±0.004%F.S/°C
Measuring MediumOil, water, gas, etc.
Process ConnectionsThread/ Flange
Zero Temperature Drift±0.03%F.S/°C
Pressure Range-100KPa~3MPa
Temperature Compensation-10~70°C
Long-term stability±0.1%F.S/3y
Ingress ProtectionIP67
Pressure TypeDifferential Pressure

We provide an Intelligent Static Pressure Transmitter designed for precise measurements. Operating at 24VDC, it offers a 4~20mA output signal with an impressive accuracy of 0.065%FS. With a wide frequency range of 5kHz~650kHz, this transmitter ensures reliable performance. Featuring an M20*1.5 electrical connection, it covers a pressure range of -100KPa~3MPa. Temperature compensation from -10~70°C, storage temperature of -50~85°C, and medium temperature range of -40~100°C make it versatile. With an IP67 rating for ingress protection, this transmitter is ideal for various industrial applications. Manufacturer, exporter, and supplier of high-quality instrumentation.
