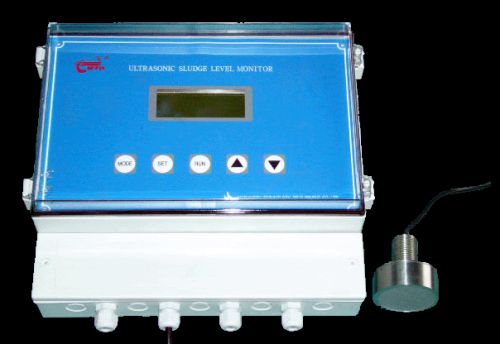

Interface Depth Level Meter

We are offering interface depth level meter.
ultrasonic sludge interface meter is a kind of measuring thinkness of sludge in the liquid. instrument use reliable ultrasonic echo detection principle, detect the distance of sensor probe and sludge interface,so as to optimize the mud control and dosing control, prevent water deterioration, avoid sludge denitrificate and decomposite, optimization control process.
technology parameter:
model:hl2000
sound frequency:400khz
measurement range:0.5-1.0 m
accuracy:±1cm
weight:
converter:3.6kg/sensor:3kg
output:4-20ma current output upper/lower-limit relay output
powder source:85-264vac 10va
operating temperature:-20-60 °c
display:lcd
feature:
1 reliable ultrasonic echo measurement principle, easy to operate
2 equipped with automatic cleaning system,improve the working reliability;
3 ultrasonic emission energy automatic adjustment, can adapt to all kinds of measuring medium and broad range
4 advanced circuit design and software algorithm, can eliminate the interference, stable accurate measurement
5 can graphic display both sludge stratified state and lcd measured value at the same time
6 the lower limit alarm and fault alarm.
