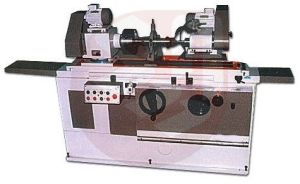

| “SHREE” Brand Internal Grinding Machine | ||||||
| Specification | IG150 | IG300 | IG450 | IG500 | IG600 | |
| Capacity | ||||||
| Distance Between Work Spindle Nose to Grinding Spindle Nose | 160 mm | 325 mm | 475 mm | 550 mm | 650 mm | |
| Height of Center | 102 mm | 102 mm | 130 mm | 150 mm | 150 mm | |
| Minimum Bore Diameter | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm | |
| Maximum Bore Diameter | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | |
| Coolant Tank Capacity | 35 ltr. | 35 ltr. | 50 ltr. | 50 ltr. | 50 ltr. | |
| Work Head | ||||||
| Swivel In Degree | ±9 | -4 to +10 | -3 to +9 | -3 to +7 | -3 to +7 | |
| Speed In Range RPM | 90-210-360 | 90-180-360 | 90-180-360 | 90-180-360 | 90-180-360 | |
| Tapper in Quill | MT 3 | MT 3 | MT 3 | MT 4 | MT 4 | |
| Grinding Wheel Spindle | ||||||
| Spindle Size | 60 × 200 mm | 60 × 200 mm | 60 × 250 mm | 60 × 250 mm | 60 × 250 mm | |
| Spindle Speed – Standard | 12000 rpm | 12000 rpm | 16000 rpm | 16000 rpm | 16000 rpm | |
