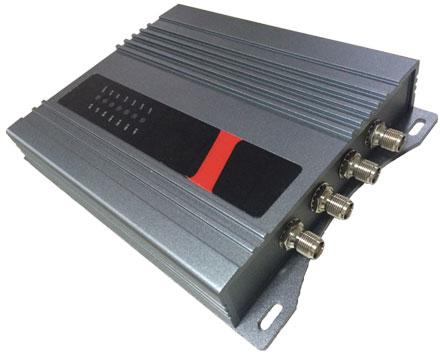

Inventory Management System 4-port UHF Passive RFID Tag Reader

MOQ1 Piece(s)
Brand NameZKHY
Applicationlogistics, access control, anti-counterfeit and industrial production process control system, etc.
Number Of FlowerUHF RFID Fixed Reader
Support ProtocolISO18000-6B/EPC CLASS1 G2
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Number Of FlowerUHF RFID Fixed Reader
Brand NameZKHY
Applicationlogistics, access control, anti-counterfeit and industrial production process control system, etc.
RF Power0~30dBm(adjustable)
Frequency865~868MHz(or customization)
InterfaceRS232/RS485,Wiegand26/34, GPIO
Model NumberZK-RFID401
Place of OriginChina
Support ProtocolISO18000-6B/EPC CLASS1 G2

We are offering
FEATURES
1. Self-intellectual property;
2. Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
3. 860~868MHz902~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 4 TNC antenna por;
7. Support auto-running, answer, trigger and real-time-inventory work mode;
8. Low power dissipation with single +9 DC power supply;
9. Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;
10. High reliability design;
Specification
Working frequency: 902-928MHz(Customizable)
Interfaces: RS232, RS485, RJ45 ,GPIO
Output Port: 4 TNC Antenna Port
RF output power: 30dBi(Adjustable)
Protocols: ISO18000-6B, ISO18000-6C (EPC CLASS1 G2 )
Read Range: Depends on antenna gain
Write Range: Depends on antenna gain
Transmission mode: FHSS or Fix Frequency transmission
Working mode: Auto-running, answer,trigger-activating
Signal: Buzzer and LED
Storage temperature: -10- +55℃
Operating temperature: -20 +75℃
Item Size: 160x186x50mm
Net weight: 1880g
Application
It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system, etc.
