Inverted Drawing Machine

We are offering inverted drawing machine. Inverted drawing machine, a dry wire drawing machine, is developed for no reverse of coils with heavy charging boxes, and equipped with dual functions - drawing and take-up. This wire drawing machine is especially applied for drawing wires of large sizes, including high & low carbon steel, stainless steel, abnormal wire and other large size of no-ferrous metals. maximum inlet diameter up to 30mm, roll diameter 600 to 1400mm.
Features:
available for continuous production of coil with heavy charging box.
Easy operation and reliable control.
3-phase ac variable-frequency speed adjustment makes smooth stepless speed regulation possible and reduces at least 30% power.
Two types of inverted drawing machines are at stock. We still can manufacture custom wire drawing machines according to your special technical requirements.

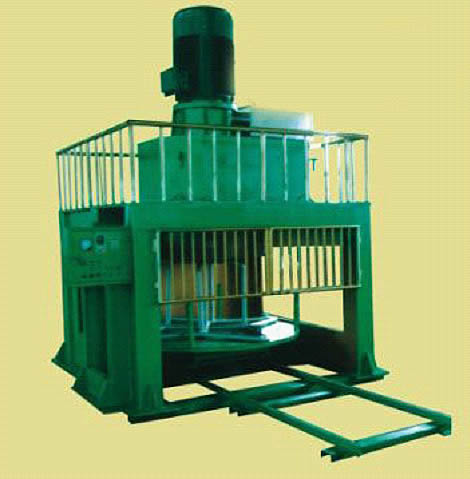

��inverted drawing machine (dl-1/550-1300)
technical parameters:
items unit model
diameter of capstan mm ��550-��1400
maximum diameter of inlet wire mm ��40
intensity of material mpa ��1200
compression rate % 15-30
maximum drawing speed m/s 2.5
motor power kw 11-110
��inverted drawing machine (ldd600 ~ 1400)
technical parameters:
technical parameters
specification ldd600 ldd800 ldd900 ldd1200 ldd1400
drum diameter (mm) 600 800 900 1200 1400
maxi inlet tensile strength (mpa) ��1250
maxi inlet diameter (mm) 7 10 14 20 30
compression rate % 20��28
maxi speed (m/s) ��2.5 ��2.5 ��2 ��1.5 ��1.5
power (kw) 15��45 55��75 75��90 90��132 110��150
take-up weight (kg) 1000 2000 2000 2500 3000
driving system strong narrow v joint group + standard reducer drive
speed control ac variable-speed
pay-off method adjustable in active state
applications steel wires (high & low carbon steel, stainless steel), non-ferrous metals
