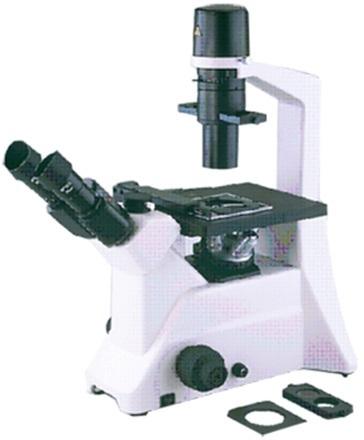

Inverted Tissue Research Culture Microscope

SPECIFICATIONS:

Eyepiece: Wide field WF10X(field number:|μ22mm) Centering telescope

Infinity and long working distance plan achromatic objective: PLL 10X0.25 Work distance:4.3 mmΦCover glass thickness:1.2mm. PLL 20X0.40 Work distance:8.0 mm£ Cover glass thickness:1.2mm. PLL 40X0.60 Work distance:3.5 mm£ Cover glass thickness:1.2mm.
Phase Contrast Objective::PLL 10X0.25 PHP2 Work distance:4.3 mmΦCover glass thickness:1.2mm.
Eyepiece tube: Inclination angle is 45° and interpupillary distance is 53 ˜75mm.

Focus system: Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing is 2μm.
Nosepiece: Quintuple nosepiece
Stage: Fixed stage overall size is 227mmX208mm
Glass rotundity stage overall size is Φ118mm
Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse)
Culture dish holder 1: Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Φ87.5mm
Culture dish holder 2: Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Φ68.5mm
Culture dish holder 3: Inside locating slot size::57mm (W)X82mm (L)
Condenser system: Long working distance condenser, working distance: 55mm, and with turnplate phase contrast unit
Illumination system: 6V30W halogen, brightness enable control
Filter: Frosted glass and blue , green filter
