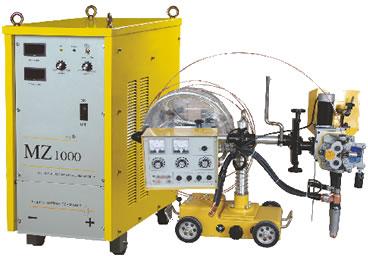

    Inverter Submerged ARC Welding Machine

    Inverter Submerged ARC Welding Machine

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    The power supply can be used for submerged arc welding, MMA welding, air carbon arc gouging. New design and specific processing treatment for special environment  , greatly increase reliability of....
    View More Details
    Send Enquiry

    Company Information

    SKILLWELD INDIA PVT. LTD.
    location Jogeshwari, Mumbai, Maharashtra
    View Number
    • calendar Member Since 11 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    • The power supply can be used for submerged arc welding, MMA welding, air carbon arc gouging.
    • New design and specific processing treatment for special environment  , greatly increase reliability of welder, suitable for various working environment.
    • Adopts up to date and the most advanced control principle and each technical index reaches class A grade.
    • Excellent welding performance, deep molten pool, high intensity good appearance.
    • Widely applied for automatic welding of various carbon steel, alloy steel, stainless steel pressure vessel.
    • Built in over heat, over current, over voltage and low voltage protection circuit, operating safely


    TECHNICAL SPECIFICATIONS

    Parameters\ModelsMZ630MZ1000MZ1250
    Input Voltage (V)AC380+ -15%AC380+ -15%AC380+ -15%
    Frequency (Hz)50/6050/6050/60
    Related Input(A)53.184.3105
    No-Load Voltage (V)727280
    Output Current Range(A)50-630112-1000112-1250
    Rated Output Voltage444444
    Arc Force Current Range(A)0-1000-1000-100
    Duty Cycle (%)606060
    No-Load Loss300300300
    Efficiency(%)858585
    Power Factor0.930.930.93
    Insulation GradeFFF
    Housing Protection GradeIP21IP21IP21
    Net Weight (KG)548598
    Dimension(MM)670x337x617760x380x820760x380x820
