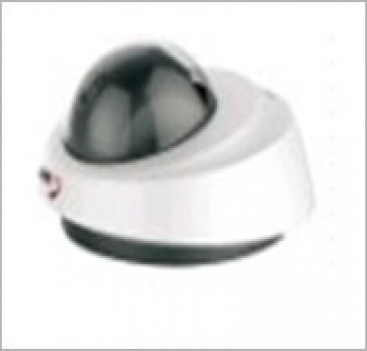

IP Camera

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Max resolution:1920(H).1080(V),output Real-time HD 1080P image 1/3" SONY Progressive Scan CMOS Support Digital WDR,3D-DNR , 4 area privacy mask, anti-trembling H.264/MJEG is optional, dual streaming, low bandwidth,high quality. Support motion detection, network fault detection and alarm video, image snapping Support ONVIF protocol. vandalproof dome camera.

View More Details

Send Enquiry

Company Information

Sk Technologies

Netaji Subhash Place, Delhi

View Number

Member Since 14 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model No		KC-PA5113
Hardware
Soc of Chip		HISILICON Hi3518C+138
Sensor		1/3" SONY Sensor,Progressive Scan,Super Low Light CMOS
Effective Pixels		1280(H).1024(V)
Min.Illumination		Color Mode:0.05Lux @F1.2,BAMOLux( IR ON)
S/IN		50db(AGC OFF)
WDR		100db
Day&night / IR Parameters		Auto,dual IR-Cut filter
Interfaces
Lens		3.6mm Lens optional
Network Interface		10/100M BASE-TX,RJ-45 connector
Audio video encoding
Video Compression		H.264 Baseline Main Profile; MJPEG/JPEG
Resolution	Master Streaming	12801024 1-25(30)fps/sec, 1280960 1-25(30)fps/sec , 1280*720 1-25(30)fps/sec
	Second Streaming	720576 1-25(30)fps/sec, 640480 1-25(30)fps/sec
		640352 1-25(30)fps/sec, 320240 1-25(30)fps/sec
Video Bitrate		32Kbps ?16Mbps,Supports CBRNBR
Title OSD		Supports channel name, date, and video stream information overlay;OSD location is adjustable
Data transmission and storage
Data storage		Video and Image
Recording		Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output		FTP,E-mail, Exporer, Software
Network protocol		TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
ONVIF protocol		Support
Remote View	Computer	IE 6.0 or up, max 16 user
	Mobile Phone	Windows Mobile, Symbian, iPhone, Android
General Parameters
Operating Temperature! Operating Humidity		-20C - +55 t / 0% - 90%
Power! Power Consumption		DC12V / 2W(MAX)
Operating Temperature		-10 C to +50C , RH 80% Max
Storage temperature		-20C to +60C , RH 90% Max
Dimension		110mm(L)*90mm(W)"65mm(H)
