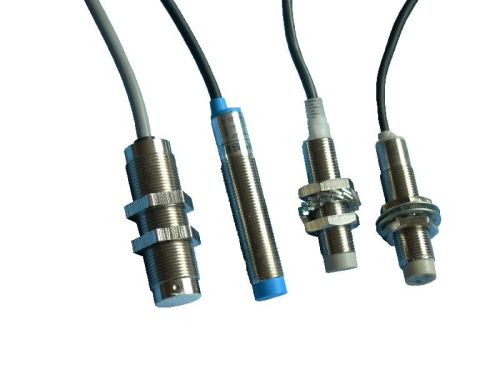

    IPS-003 Inductive Proximity Switch

    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world

    We are based in Shanghai(China) and we have carved a niche for ourselves in the market by offering quality products. We are strongly backed by a smart logistics network owing to which we are capable....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 18 Years
    • building Nature of Business Supplier
    • Year of Establishment 2000

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    We are based in Shanghai(China) and we have carved a niche for ourselves in the market by offering quality products. We are strongly backed by a smart logistics network owing to which we are capable to deliver the product range in safe and timely manner.



    Specifications  :

    • An inductive proximity switch consists of 4 main components: coil, oscillator, detection circuit and solid state switching device. The oscillator creates a high frequency field that is emitted from the sensing face. When a metal target enters that field, eddy currents are induced in the metal target (hence the term Inductive).
    • Energy is required from the oscillator to maintain the eddy currents in the target.    As the target enters the sensing range of the sensor, the energy required becomes too great for the oscillator, and it stops. The detection circuit senses this and signals the switch to change state. After the metal target leaves the sensing range, the oscillator resumes functioning, and the switch returns to its normal state (either Normally Open or Normally Closed).


    Technical Specifications  :

    • ModelIPS-D-4-M1665
    • Size mmM-16x65
    • Voltage (VDC)5-40
    • Max. Load Current (mA.)300
    • Sensing Distance (mm) FM NFM46
    • Switching Frequency (Hz.)350
    • Voltage Drop At Full Load (VDC)2.5
    • No.Load Current (mA)>10.0
    • Position Indication
    • LEDResidual Current (mA.)0.001Cable
    • Length(mm)2000 Housing
    • Material Brass


    Graph


    Download Detail File : Click Here
