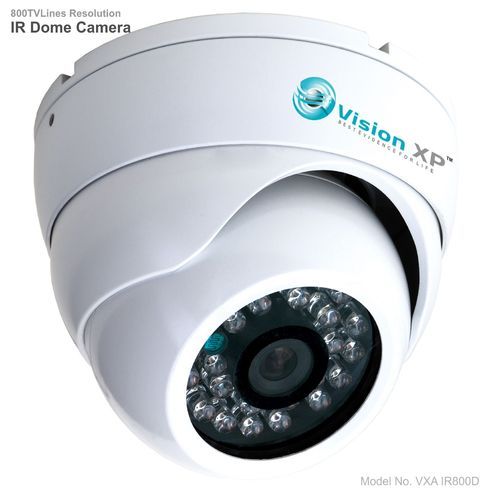

IR Dome Camera

Pixel Size & Type5.6um x 5.6um active pinned-photodiode with high-sensitivity mode for low-light condition
Frame rate50/60field/sec
ParameterTypical Value
Color filter arrayRGB Standard Bayer
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Product Details

Automatic FunctionExposure, white balance, black level offset correction, flickerless, color saturation control, on-the-fly defect correction, aperature correction
Model No.VXA IR650D
Shutter typeElectronic rolling shutter (ERS)
Pixel Size & Type5.6um x 5.6um active pinned-photodiode with high-sensitivity mode for low-light condition
Imaging areaTotal array size : 3.58mm x 2.688mm
Color filter arrayRGB Standard Bayer
FeaturesAllow easy shoot, Optimum clarity, High compression ratio
Sensor scan modePrograsive scan
Power12v DC Max 1mA
Lens3.6mm default – optional 4.2 , 4.2 , 6.00mm
LEDSelectable 24 IR LED 15-20mtr Rage
ParameterTypical Value
Sensor format1/4inch Aptina 640H x 480H – 6500TVLines Resolution (PAL)
Frame rate50/60field/sec
Programmable ControlExposure, white balance, horizontal & vertical blnking, colour, sharpness, gamma correction, horizontal & vertical image flip, zoom, windowing, sampling rate GPIO control
