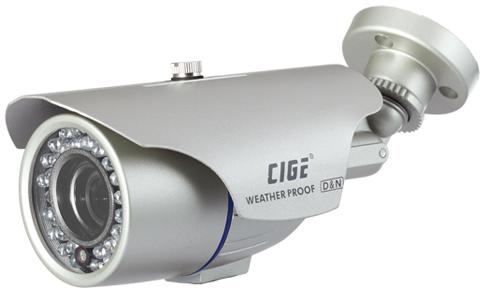

Contact SupplierWe are offering Ir Waterproof Camera - (dis-689hd ) etc.
1/3sony high sensitivity ccd;
high resoluction: color 600tvl, b/w 650tvl;
35pcs 5mm ir led, 40m ir rnge; ir cut
6mm cs lens(4mm, 8mm optional);
osd menu(english/chinese), rs-485 control;
dwdr(digital wide dynamic range);
2d-dnr, awb, agc, blc, ip66-rate;
model: dis-689hd
image sensor: 1/3sony high sensitivity ccd
effective pixels pal: 750(h)x582(v); ntsc: 768(h) x494(v)
signal system: pal/ntsc
horizontal resolution 600tvl(color), 650tvl(b/w)
min. Illumination 0.03lux
s/n ratio more than 50db
shutter speed 1/50(1/60)-1/10, 000(s)
gain control: auto
white balance: auto
b/l compensation: auto
sync. System: internal
varifocal lens 4mm/6mm/8mm cs lens
ir led: 35pcs 5mm ir led
ir distance :max. 35m
ir lamps wavelength: 850nm
power requirement: dc 12v 150ma(ir on 510ma)
(ir on 560ma)
dimensions(wxdxh): 80mmx87mm x166mm
weight approx. 700g
