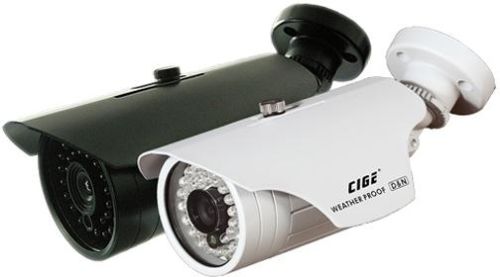

Contact SupplierIr waterproof camera
1/3sony high sensitivity ccd
high resolution: color 480tvl,b/w 500tvl
6mm board lens(3.6mm optional);
35pcs ¢5 ir led,35m ir range
min.illumination:0.002lux(b/w)
osd menu(english/chinese);
ip66-rated; 2d-dnr;awb,agc,blc
casing:white/black/silver(optional)
specifications:
model: dis-729dl
image sensor: 1/3sony high sensitivity ccd
effective pixels: pal: 750(h)x582(v) ntsc:768(h)x494(v)
signal system: pal/ntsc
horizontal resolution: color 480tvl,b/w 500tvl
min. Illumination: 0.5lux
s/n ratio: more than 48db
shutter speed: 1/50(1/60)-1/10,000(s)
gain control: auto
white balance: auto
b/l compensation: auto
sync. System: internal
varifocal lens: 6mm board lens(3.6mm optional)
video output: 1.0vp-p75ω
ir lamps wavelength: 850nm
power requirement: dc 12v 150ma (ir on 510ma)
power consumption: dayapprox.1.8w night/approx.6.12w
dimensions(wxdxh): 64mm x 86mm x 142mm
weight: approx.680g(contains original bracket)
