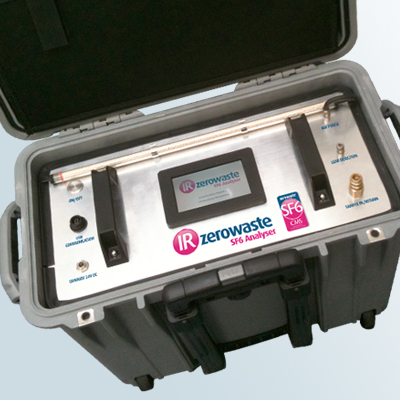

IR Zerowaste SF6 Analyzer

The world’s most advanced SF6 Analyser… bringing the laboratory to the field.

The Zerowaste® is the world’s first SF6 impurity gas analyser to combine the following features :

• Simultaneous SF6 measurement of up to 11 parameters

  • Uses Advanced Infrared Absorption Technology To Measure Sf6, H2o, Hf, R12 And Cf4 In Addition To So2, Co And H2s With Electrochemical Cell, Bringing Laboratory-standard Measurement To The Field
  • Fully Battery Operated (Minimum 8 Hours) Even During Gas Pump Back
  • Automatic Sampling Of Up To 5 Sequential Measurements
  • Automatic Pump Back For Sampled Gas (User-selectable)
  • Automatic Start Of Measurement Upon Detection Of Gas Connection (User-selectable)
  • Minimum Amount Of Gas Drawn Of Typically 250cc Per Measurement Cycle
  • Time Programmable Moisture Purge For Highest Quality H2o Measurement
  • Fully Upgradeable – Easy Addition Of More Sensors
  • Innovative And Patented Modular Design That Allows The Measurement Of The Largest Number Of Gases Offered In The Market
  • Optional Sf6 Leak Detection Probe
  • Full Colour Touchscreen Display With User Friendly Interface
  • Data Logging
  • User-selectable Methods To Display Compliance With Different Industry Standards Including Iec/cigre.

This has been made possible by utilising some of the best experience and knowledge in gas sensing, spectroscopy and product design and an extensive knowledge of the SF6 impurity market.
