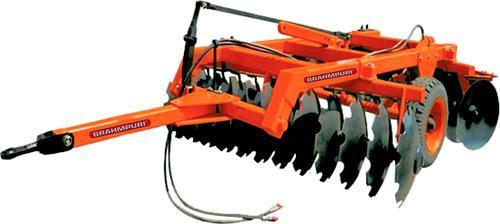

| Heavy Duty Hydraulic Disc Harrow | |||||||||
| Model | Rmwlhdhdh-16 | Rmwlhdhdh-18 | Rmwlhdhdh-20 | Rmwlhdhdh-22 | Rmwlhdhdh-24 | Rmwlhdhdh-26 | Rmwlhdhdh-28 | Rmwlhdhdh-30 | Rmwlhdhdh-32 |
| Frame | 132 X 132 X 7 (SQ. Pipe Frame) | ||||||||
| Gang Bolt | 32 Mm (M.S Sq) | ||||||||
| No Of Disc | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 |
| Type Of Disc | Plain / Notched Disc (As Required) | ||||||||
| Disc Diameter | 610 X 4.5 T (24") Or 660 X 6t (26") | ||||||||
| Width Of Cut | 1900 | 2100 | 2300 | 2500 | 2700 | 2900 | 3100 | 3300 | 3500 |
| Distance Between Disc | 228 (mm) | ||||||||
| Bearing Hub | 8 | ||||||||
| Weight(Kg Approx) | 1440 | 1530 | 1620 | 1750 | 1835 | 1920 | 2005 | 2080 | 2160 |
| Tractor H.P. | 60-70 | 70-80 | 80-90 | 90-110 | 110-130 | 130-145 | 145-160 | 160-170 | 170-190 |
