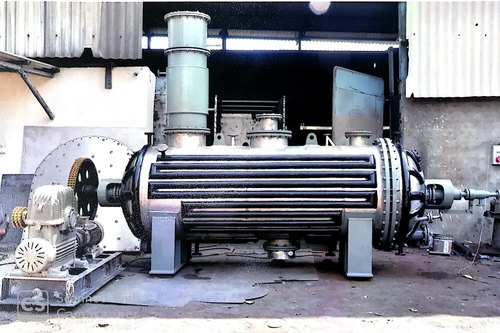

Iron Rotary Vacuum Paddle Dryer, Display Type : Manual

Listing ID #6657957

  • MOQ 1 Piece
  • MaterialIron
  • Display TypeManual
  • VacuumUp to Even 0. 6 Torr
  • Charging capacity40 to 60% of gross capacity depending on the nature of the products.
  • Supply Type Exporter, Supplier, Trader
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 7 Years
  • Nature of Business Manufacturer
  • Year of Establishment 2007

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Material Iron
  • Display Type Manual
  • Gross Capacity From 500 Ltrs. to 25000 Ltrs.
  • Heating Temperature 30o to 300 Oc
  • Vacuum Up to Even 0. 6 Torr
  • Charging capacity 40 to 60% of gross capacity depending on the nature of the products.

Operation:

  • Slurry/wet cake is charged through the charging door while keeping rotation of the agitator on.
  • Vacuum is then applied to the dryer along with dust catcher (mounted on the dryer) condenser and receiver.
  • Heating medium is passed through the jacket and agitator. Vigorous evaporation of moisture take place under vacuum. The vapor passes through the bag filters of the dust catcher, goes into the condenser and the condensate is collected in the receiver.
  • Evaporation under high vacuum and low temperature results in faster recovery of maximum solvents.
  • Adequate provision has been provided to cater for fluctuations in steam pressure / temperature, in condenser cooling water temperature, moisture content of feed etc.
  • Dry product is discharged via the discharge valve by the reversing the agitator rotational direction to "discharge" direction.


Salient Features:

  • Ideal for temperature sensitive materials.
  • Almost 100 per cent recovery of solvents.
  • Low energy consumption.


Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Company Profile

With our view to answer the growing demands of the fabrication and engineering sector, we at Rahul Engineers have turned a renowned business entity engaged in manufacturing, suppling, and exporting a diverse collection of the product line. We have specialization in Air Pollution Control Systems, Flash Dryer, Bottom Discharge Valve, Spin Flash Dryer, Rotary Dryer, Drum Dryer, Filter Media, S.S. Fabrication, Pressures Vessels, SS/MS Reactor with limpet / Internal Coils / Jackets, etc. The available products are made keeping in mind all the prevailing industry standards.

We work intimately with our clients and offer cost-effective and personalized solutions. The potency of the company lies in meeting its promises to its client. It is a matter of great contentment to us that our clients continue to have a business bond with us continuously.

Our vision

Our Vision is to give well-engineered, top-quality equipment equivalent to global standards and meet the client’s requirements at affordable cost. Robust design, quality procedures, and cautious examination make our product accurate and specific.

We take pride in supplying the most cost-effective, sturdy, and easily kept machines to suit the needs of the buyer’s individual specific needs. Their suggestions, guidance, and feedback massively helped us in designing personalized machines for their special needs.

Based in Valsad, Gujarat (India), the company is owned and managed by Mr. Rajiv Yadav (Manager). His years of market experience have helped us to achieve better.

  • Nature of Business Manufacturer / Exporter / Supplier / Trader
  • Number of Employees Below 20
  • Year of Establishment 2007
