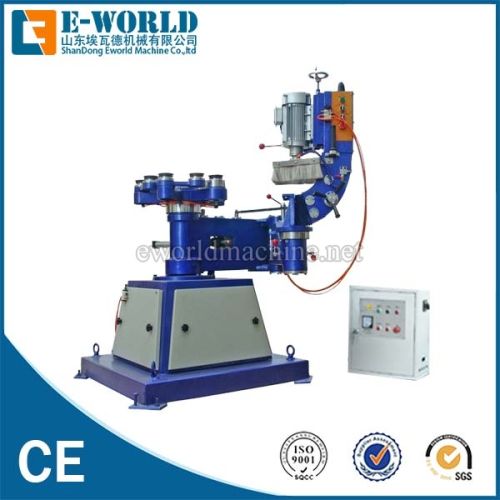

Irregular Glass Edges Grinding Machine

We are offering irregular glass edges grinding machine.
Feature
glass shape edging and beveling machine is suitable for processing the edge of round shape,
oval shape & other irregular shape of glass sheet with various size and thickness.
It adopts the different wheels to processing different shape like semicircular, flat edge and og edge etc.
Adopt the cup shape wheel and adjust the angle of motor can be processing the bevel edge.
Introduction:
1. Suitable for grinding and polishing the outer edge with rounded or duckbilled shape for circle,
oval and irregular flat glass.
2. Glass is absorbed onto vacuum sucker, motor driven rotary plate or a separate disk drive is an
independent five-star turntable rotation.rotary speed can be adjusted as required.
3. Adopt air cylinder to grind simple shape glass semi-automatically.
4. When grinding the pencil edging, install three grinders to process coarse grinding, fine grinding and polishing.
5. When grinding the beveling, adopt bowl shaped grinding wheels, adjustment the bevel angle by head
tilted back the grinders.
Technical parameters
1. diameter of rotary glass : 100～2000mm㎜
(note: when grindr thin glass, glass size should not be too large)
2. glass thickness:3-25mm
3. bevelling degree: 0～15°
speed dial: 0.5 ~ 2.5 r min:
4. disk speed: ：1.3～6.5rmin
5. bevelling abrasive wheels: φ150
6. abrasive wheels:φ100、φ150、φ175
7. glass turning dia of bevelling grinding ; φ200～φ2000
note: the thickness of the glass is less than 5 mm,can not grind this diameter.
8. the biggest bevelling width:35mm
9. total power:2.5kw
