Dip Painted Polished Iron Cuplock System, For Construction Use, Certification : ISI Certification

We are known for manufacturing exporting and supplying the best quality Cuplock System. We are backed by avant-garde infrastructure for the fabrication of Cuplock System in different finishes and specifications. The Cuplock Systems are available in different finishes with us. They can also be purchased in varied sizes for specific applications.


Components :

• Cuplock Standard/ Verticals
• Cuplock Ledger/ Horizontals
• Intermediate Transom

Features :

• Made from 40 NB (48.3mm OD) Superior Quality Medium Class Pipe conforming to I. S. 1161
• Cups welded at every 500 mm centre to centre
• CO₂ MIG Welding by Automatic Machine
• Cups made out of malleable casting
• Top cups can be moved and retained by a fix stop
• Finishes Available : Painted, Electro Galvanized (Silver/ Yellow passivation), Hot- Dipped Galvanization, and Sherardized.
• Customised solutions available as per client needs

Advantages :

• Cuplock system can be used for all forms of support and access structures in the building and construction industries, ship building, offshore construction and industrial maintenance.
• It provides major savings in erection and dismantling time, thus minimizing on-site costs. When not in use, its modular construction ensures minimal space requirements for storage.

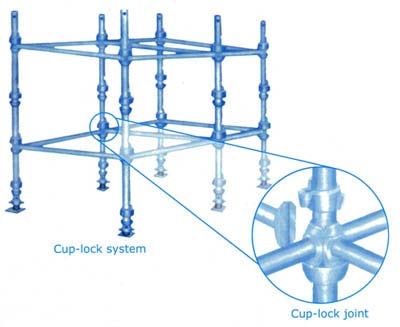

• A unique node point connection allows up to four horizontal members to be connected to a vertical member in one single action – without the use of nuts and bolts or wedges. The locking device is formed by two cups, a fixed lower cup which is welded to the vertical component at pre-located intervals and a sliding upper cup. The forged blade ends of the horizontal components are located into the lower cup, the upper cup is moved down and rotated to secure the components in place and a hammer blow then results in a positive and rigid connection.

Standard Sizes And Weight : customised sizes available as per client needs
