Micro Vickers Hardness PC Conversion Kit, For Industrial, Certification : ISI Certified

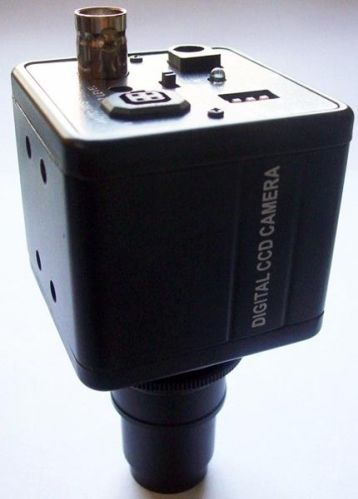

The PC conversion kit for Microvickers Hardness Tester is easy to install kit for optical Microvickers Hardness Tester. The system includes High resolution CCD camera with adapter and captures 90% field of view. Put this unit at eyepiece and it is ready to operate.
The unit is USB powered. As you plug in USB video capture, power is sourced by USB port and no other power supply is required. This makes it ideal for measurement with laptop.
The system comprises specially developed image processing software for automatic measurement, Software is proven in industry and is being used since many years to get reliable and accurate readings in less than a second.
The Software Has Various Features As Magnification Of Image. The Software Includes :

• Online indentation setting and focusing on PC monitor.
• Facility for Auto / Remote Auto / semi Auto / Manual modes of operation.
• Well managed database saves readings w.r.t. batch and certificate.
• Report generation in the form of certificate and graph with variation and histogram.
• Facility for calibration and check of calibration.
• Advance image processing algorithm implemented for automatic measurement.
• Statistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum reading.
• Measuring scale Calibration / Verification on PC monitor.
• 4 objectives supported with 4 independent calibrations
• Multiple impression measurement mode manual measurement.
• Case Depth analysis with report

Scope of Supply

• CCD Camera and adapter with connecting cable
• Power supply
• External Video capture with USB 2 connectivity and driver software
• Software CD
• Softdog : Hardware dongle for software
• Instruction manual

PC Requirements

• 2 gigahertz (GHz) or faster processor
• 1 gigabyte (GB) RAM minimum
• Microsoft Windows 7/8/Vista/XP operating system
• Display screen resolution minimum 1024 by 768 pixels
• Two free USB 2.0 ports

Also available Illumination System and optics as per customer requirements.
