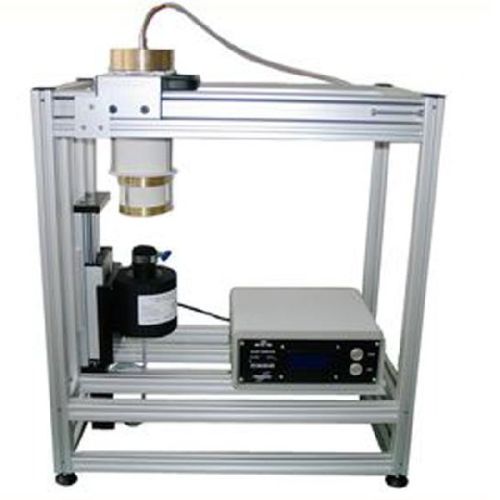

ISO 12127 Contact Heat Transmission Tester

Introduction:
this heat transmission tester for fire protection clothing is designed according to iso12127-2007 and en702.
The instrument uses the heating cylinder to provide a constant temperature in contact with the sample under certain load and a calorimeter to measure the heat transfer properties; the instrument is easy to operate, the data is accurate, safe and reliable, widely used in fire protective clothing related companies and inspection departments
international standards:
iso 12127
iso 15025
en702
technical parameters
1. The device is consists of a control box and stainless steel test gantry;
2. The sample holder is automatic lifting, the lifting speed is 5mm ± 0.2mm s
3.the k type sheathed thermocouples, diameter 2mm, temperature measurement accuracy of 0.1 ºc;
4. The heating barrel temperature is greater than 500 ºc; the contact surface of the sample diameter 25.2 ± 0.05mm
5. The barrel heating load weight 49n, can be adjusted;
6. Timer scope 99999s; timing accuracy 0.1s;
7. Calorimeter fixed disk diameter 25mm, thickness 5mm; and assembly platinum resistance temperature sensor;
8. Support frame material is nylon 66; diameter 40mm height 50mm;
9. Specimen diameter 80mm;
10. Plc and touch screen for intelligent control system;
11. Pid intelligent temperature control, the system automatically collect temperature data;
12. The system automatically calculates test data, automatic storage; can print freely;
13. The test table size: 650mm x 350 mm x 650mm;
14. Power supply 220v 50 60hz, power 800w.
