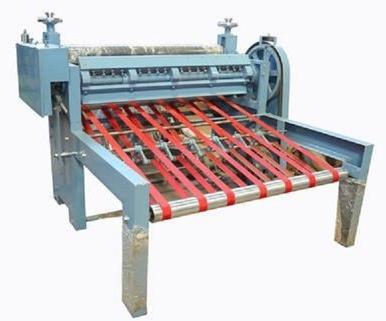

Automatic Reel To Sheet Cutting Machine, Certification : ISO 9001:2008 Certified

Features

• Machine is having special feature of oil bath gear system with oil lubricating pump
• Machine is fitted with heavy duty excel makes P.I.V. Gear Box
• Imported chain to adjust the length of the sheet to be cut with Gear Ratio 1:5
• Machine is driven by A.C. frequency drive with provision for synchronization of speed between Sheet Cutter with Corrugating Machine
• With A.C. Motor & Starter
• Feeding section with concealed gears
• Cutting section with Blade workable at four edges
• Delivery conveyor with endless Belts
• Electronic sheet counter
• Paper cutting capacity is 200 feet per minute

Specifications Body:

• This strongly design machine can be used as an independent unit or can be synchronized to a corrugation Machine for direct and accurate sheet cutting
• It minimizes the percentage of wastage

Setting Action:

• PIV gear box is provided for adjusting of sheet to the required length from 20" to 80"
• PIV gear box 1:5 ratio shall be provided

Design:

• The machine is robust in design & in grade casting
• Strong in construction and easy to operate
• Nylon sandwich belt shall be provided as a delivery conveyor to carry the sheets out
• Electric motors of 3 phase A/C 1440 RPM / 440 V ISI mark ISO 9001:2008 certified
• All moving parts are protected by safety guards
