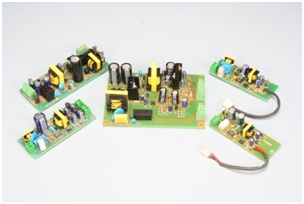

50hz Switch Mode Power Supply, Certification : ISO 9001:2015, ISO 13485:2016

₹ 500 - ₹ 1,000 / Pieces

MOQ500 Piece
Frequency50hz
CertificationISO 9001:2015, ISO 13485:2016, AS 9100 Rev D
ConditionNew
Power0-250W
Supply TypeManufacturer, Exporter
Preferred Buyer Location India, United Arab Emirates, Canada, Spain, Netherlands, Singapore, United Kingdom, United States

Company Information

4.5/5

Member Since 9 Years
Nature of Business Manufacturer
GST No. 27AAGFV5990A1Z0

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
CertificationISO 9001:2015, ISO 13485:2016, AS 9100 Rev D
FeatureEasy To Install, Electrical Porcelain, Sturdy Construction, Superior Finish
ConditionNew
Frequency50hz
Power0-250W

High Quality, High Efficiency, Universal Input, Single/Multiple Output, enclosed switch mode power supplies with screw terminals. Ideal for using communication computer peripherals, audio equipments, test equipments, instrumentation and business machine.

Wide Range Universal Input
Compact Design
Stainless Steel/ Metal Enclosure
Easy Installation - Screw Terminals
High Efficiency
Conducted EMI complies with EN55022-B
Short Circuit and Over voltage protection

Construction
Open Frame

Standard Specification

Sl No	Input VAC	Out Put VDC volt	Output Amp	Power	PCB Size [Open Type]
1	90vac to 265 vac	5v	0.5A	2.5w	74 x 35 x 23 mm
2	90vac to 265 vac	5v	1A	5w	74 x 35 x 23 mm
3	90vac to 265 vac	5v	2A	10w	74 x 35 x 30 mm
4	90vac to 265 vac	9v	0.5A	4.5w	74 x 35 x 23 mm
5	90vac to 265 vac	9v	1A	9w	75 x 40 x 30 mm
6	90vac to 265 vac	9v	2A	18w	75 x 40 x 30 mm
7	90vac to 265 vac	12v	0.3A	3.6w	74 x 35 x 23 mm
8	90vac to 265 vac	12v	0.5A	6w	74 x 35 x 23 mm
9	90vac to 265 vac	12v	1A	12w	75 x 40 x 30 mm
10	90vac to 265 vac	12v	1.5A	18w	130 x 55 x 35 mm
11	90vac to 265 vac	12v	2A	24w	130 x 55 x 35 mm
12	90vac to 265 vac	12v	2.5A	30w	130 x 55 x 35 mm
13	90vac to 265 vac	12v	3A	36w	130 x 55 x 35 mm
14	90vac to 265 vac	24v	0.3A	7.2w	75 x 40 x 30 mm
15	90vac to 265 vac	24v	0.5A	12w	75 x 40 x 30 mm
16	90vac to 265 vac	24v	1A	24w	130 x 55 x 35 mm
17	90vac to 265 vac	24v	1.5A	35w	130 x 55 x 35 mm
18	90vac to 265 vac	24v	2A	48w	130 x 55 x 35 mm
