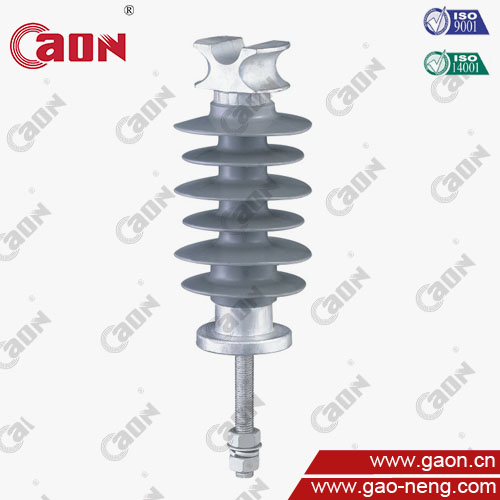

1.size and technical data of 15kv composite pin insulator
  type:fpq-15/12.5Â
Â
| rated voltage (kv) | rated mechanical bent failling load(kn) | structure height (mm) h | min.electric arc distance h | min nominal creepage distance (mm) | full wave lightning impulse withstand voltage (peak value)(kv) | 1min power frequency wet withstand voltage not less than(kv) |
| 15 | 12.5 | 240 | 170 | 505 | 125 | 50 |
          Â
Â
2.materials of 15kv composite pin insulator
1).silicon rubber for sheds/housing.
2).glass-fiber reinforced epoxy resin rod (ecr type) for core.
3).hot dip galvanized cast steel for metal fittings.
4).5000hours aging test from stri sweden & prototype test & type test & factory test ( routine and sampling test ).
5).iec / ansi / gb standard.
Â
3.company advantage:
(the world's only one insulators maker who can produce all material as below by ourselves)
1-we produce epoxy resin fiberglass rod.
2-we produce htv silicone rubber.
3-we produce hdg metal fittings.
4-famous and top brand in china.
5-superior quality and competitive price.
6-almost 20 years experience with insulators, surge arresters and fuse cutouts.
7-exported to more than 35 countries.
8-guarantee: we can give 15 years wanrantee period after shipment.
9-iso9001 and iso14001 and third party support and assurance from envertec-europe.Â
.
