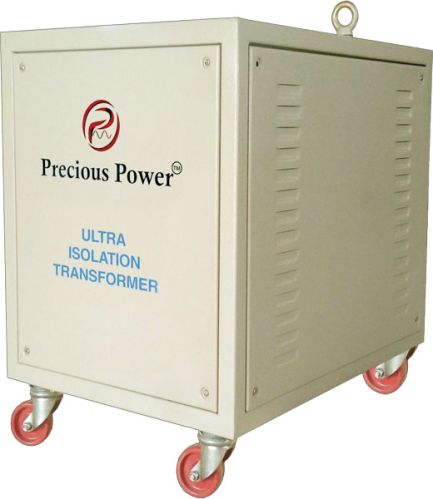

Isolation transformer, Packaging Type : Carton Box

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Capacity range upto 200 KVA 3Ph ParticularStandards System Connections Delta/Star Input Voltage 415V 3Phase Ratios 1:1 and 2:1 Regulation Better than 3.5% Output Voltage 415V or....

View More Details

Send Enquiry

Company Information

Precious Power

Khed, Pune, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Capacity range upto 200 KVA 3Ph

ParticularStandards

System Connections	Delta/Star
Input Voltage	415V 3Phase
Ratios	1:1 and 2:1
Regulation	Better than 3.5%
Output Voltage	415V or 200,220V 3Phase
Di-Electric strength	3KV for 60 Sec
Insulation Resistance	Better than 1000 Mega Ohms
Power Factor	0.75 Lead to 0.75 Lag
Construction Standard	as per IS 20126 Part I & II, IS 11171
Comman Mode Attenuation	100 db/120 db
Coupling Capacitance	0.1 PF for 80db
Leakage Current	Less than 20 Micro Amps
Type of Execution	Closed Type
Operating Temp.	0 degree celcius to 45 degree celcius
Type of cooling	Natural Air/ Forced Air Oil Cooled (Optional)

• Eliminates stresses that come from normal electrical transients.
• Meet stringent clean power requirements of the sophisticated / sensitive equipments.
• Reduces the effects of power line problems like Noise, Spikes, Surges, Transients and Neutral to minimum.
