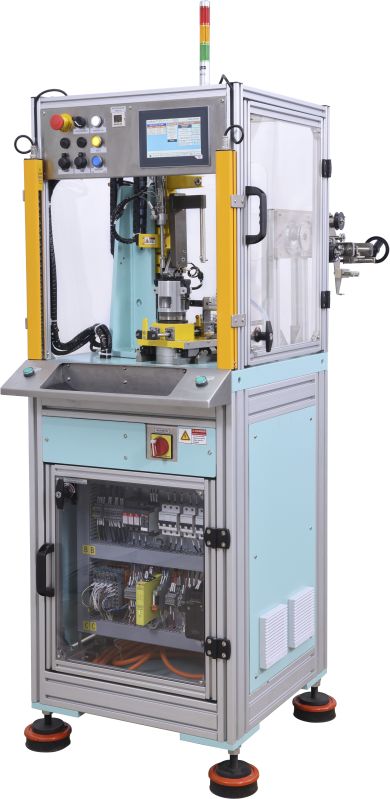

IST1-120 Internal Stator Needle Winding Machine

This Single station machine is designed to wind internal stator/in-flux motor stators. With a fully automatic needle type winding head engineered to carry wire through the stator slots, the copper consumption is drastically reduced compared to conventional winding techniques.

 Features:

• Completely automatic operation with Needle Type Winding Head engineered to carry wire through the stator slots with high speeds.
• The machines are PLC controlled and deliver high level of accuracy with AC Servo motors coupled to precision mechanics in each axis.
• Automatic core indexing driven by direct drive motor with infintiely programmable indexing angle to achieve different winding positions and wire routing paths.
• Coordinated movement of winding head, core indexer and head traverse to achieve very complex wire routing configurations with ease.
• Optimum combination of mechanical, pneumatic and electronic systems incorporated in the machine provide high performance coupled with reliable operations and simplicity in maintenance.
• Electronic wire tension control through PLC to achieve precise tension. Programmable tension for different stages of winding facilitates achieving better winding quality and flexibility in routing.
• Robust machine frame to dampen the vibrations and withstand large loads generated during high-speed winding.
